Dataset Filters

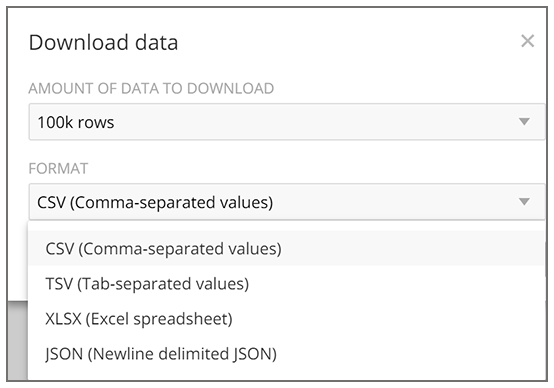

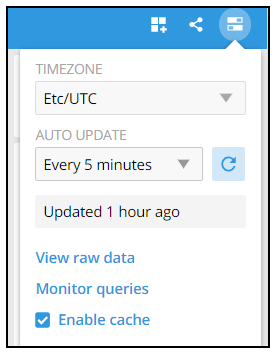

Datasets are collections of Columns and Metrics that are used to generate visualizations and queries that help in analyzing and monitoring the network performance. These Columns and Metrics are organized into separate groups to form multiple Datasets.

Dataset Filters
Table 1. Identifying Data Studio Interface Components
No Name
1 Columns
2 Metrics
3 Table

Columns Filter

The Columns filter lists the following industry standard details.
  • AP
  • Application
  • Authentication
  • Band
  • BSSID
  • Business Technology Management (BTM)
  • Cable
  • Channel
  • Client
  • Connection
  • Controller
  • Device
  • Domain
  • Event
  • Lable
  • LAN
  • PoE
  • Port
  • Radio
  • Rogue
  • Session
  • SSID
  • Switch
  • System
  • Tenant
  • Time
  • Zone

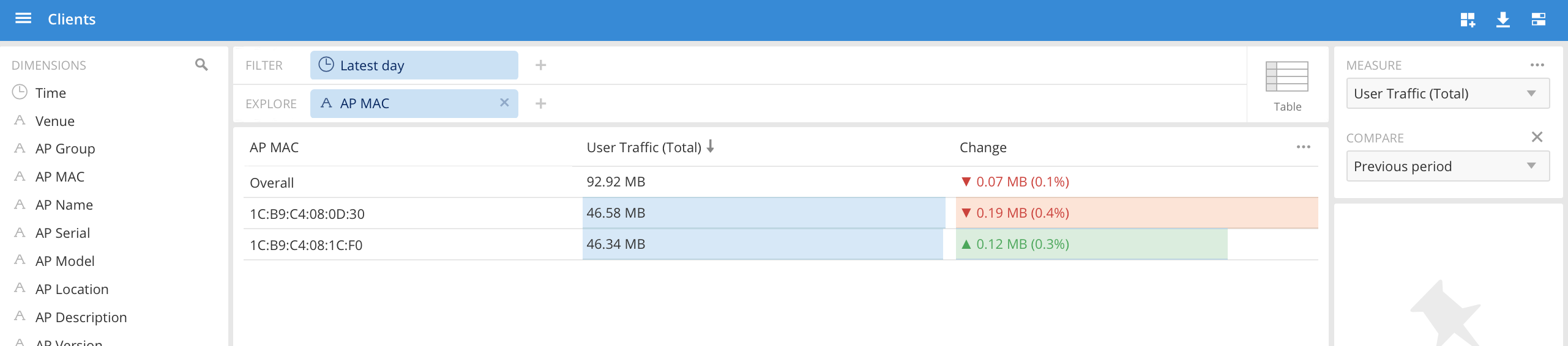

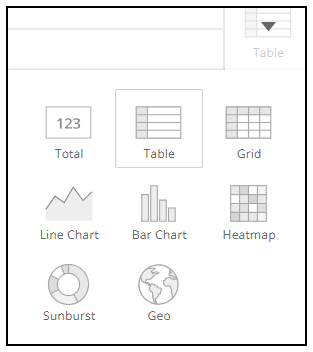

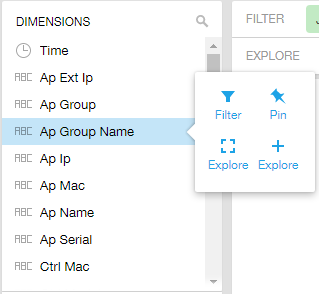

Click the Table icon to view the Columns tab. The applicable columns are grouped under their respective Datasets. After you select a Dataset, the columns grouped under that Dataset are displayed in the Columns tab.

The following table describes all the dimensions that are supported on one or more Dataset in RUCKUS Analytics.

Table 2. Columns
Column Name Description Supported Dataset
Alarm Code Unique string assigned by the controller to an alarm. AP Alarms
Alarm State Indicates if the alarm is outstanding. AP Alarms
Alarm Type Description for access point and controller alarms. AP Alarms
Alarm UUID Unique string assigned by the controller to an alarm. AP Alarms
AP Description Description string of the access point that is configured in the controller.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
  • AP Events
  • AP Inventory
  • AP Alarms
  • AP Rogues
  • Client Connection Counts
  • Client Connection Events
  • AP WiFi Calling
AP External IP External IP address of the access point.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
  • AP Events
  • AP Inventory
  • AP Alarms
  • AP Rogues
  • Client Connection Counts
  • Client Connection Events
  • AP WiFi Calling

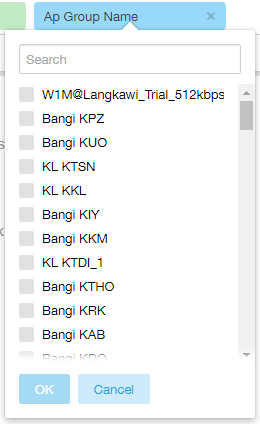

AP Group AP Groups configured in the controller.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
  • AP Events
  • AP Inventory
  • AP Alarms
  • AP Rogues
  • Client Connection Counts
  • Client Connection Events
  • AP WiFi Calling
AP Group Location AP group location.
  • Client Info and Statistics
  • AP Inventory
  • AP Info and Statistics
AP Internal IP Internal IP address of the access point.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
  • AP Events
  • AP Inventory
  • AP Alarms
  • AP Rogues
  • Client Connection Counts
  • Client Connection Events
  • AP WiFi Calling
AP Latitude Latitude of GPS coordinates. AP Inventory
AP Longitude Longitude of GPS coordinates. AP Inventory
AP Location Location string of the access point that is configured in the controller.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
  • AP Events
  • AP Inventory
  • AP Alarms
  • AP Rogues
  • Client Connection Counts
  • Client Connection Events
  • AP WiFi Calling
AP MAC Base MAC address of the access point.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
  • AP Events
  • AP Inventory
  • AP Alarms
  • AP Rogues
  • Client Connection Counts
  • Client Connection Events
  • AP WiFi Calling
AP Model Description of the access point model type.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
  • AP Events
  • AP Inventory
  • AP Alarms
  • AP Rogues
  • Client Connection Counts
  • Client Connection Events
  • AP WiFi Calling
AP Name Name of the access point configured in the controller.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
  • AP Events
  • AP Inventory
  • AP Alarms
  • AP Rogues
  • Client Connection Counts
  • Client Connection Events
  • AP WiFi Calling
AP Serial Serial number of the access point.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
  • AP Events
  • AP Inventory
  • AP Alarms
  • AP Rogues
  • Client Connection Counts
  • Client Connection Events
  • AP WiFi Calling
AP Version Firmware version number of the access point.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
  • AP Events
  • AP Inventory
  • AP Alarms
  • AP Rogues
  • Client Connection Counts
  • Client Connection Events
  • AP WiFi Calling
AP WiFi Capability Client WiFi6 Capability. Client Info and Statistics
Application Category Category of applications accessed by the Wi-Fi client. Applications
Application Name Name of the application accessed by the Wi-Fi client. Applications
Authentication Method The Wi-Fi encryption and authentication method adopted.
  • Client Info and Statistics
  • Client Sessions
Band Radio band used by the AP.
  • Client Info and Statistics
  • AP Info and Statistics
  • AP Events
Band Capability Band supported by the client.
  • Client Info and Statistics
  • AP Info and Statistics
BSSID Basic service set identifier. AP Info and Statistics
BTM Capability Client BTM capability. Client Info and Statistics
Cable modem firmware Firmware version of the cable modem. AP Inventory
Cable modem IP IP address of the cable modem. AP Inventory
Cable modem MAC MAC address of the cable modem. AP Inventory
Category Category for access point and controller alarms or events.
  • AP Events
  • AP Alarms
Channel The channel number used.
  • AP Info and Statistics
  • Client Info and Statistics
  • Client Sessions
  • AP Events
Client IP Internal IP address of the Wi-Fi client.
  • Client Info and Statistics
  • Client Sessions
  • Applications
Client Capability Indicates if client is WiFi6 or legacy client. Client Info and Statistics
Client MAC MAC address of the Wi-Fi client.
  • Applications
  • Client Info and Statistics
  • Client Sessions
  • Client Connection Events
Client MAC Type Indicates if clients MAC is OEM or a random MAC. Client Info and Statistics
Client Radio Mode Possible values are: ac, n, a, g, b, or "unknown" (if SmartZone version is prior to 3.6).
  • Client Info and Statistics
  • Client Sessions
Client VLAN VLAN ID used by the client. Client Info and Statistics
Connection Stage Indicates Client authentication type.
  • Client Connection Counts
  • Client Connection Events
Connection Status Connection status of the access point: Online, Offline, Discovery, Provisioned. AP Inventory
Controller MAC MAC address of the controller.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
  • AP Events
  • AP Inventory
  • AP Alarms
  • Controller Inventory
  • AP Rogues
  • Client Connection Counts
  • Client Connection Events
  • Switch Inventory
  • Switch Network
  • AP WiFi Calling
Controller Model Description of the model of the controller.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
  • AP Events
  • AP Inventory
  • AP Alarms
  • Controller Inventory
  • AP Rogues
  • Client Connection Counts
  • Client Connection Events
  • Switch Inventory
  • Switch Network
  • AP WiFi Calling
Controller Name Name of the configured controller.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
  • AP Events
  • AP Inventory
  • AP Alarms
  • Controller Inventory
  • AP Rogues
  • Client Connection Counts
  • Client Connection Events
  • Switch Inventory
  • Switch Network
  • AP WiFi Calling
Controller Serial Serial number of the controller.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
  • AP Events
  • AP Inventory
  • AP Alarms
  • Controller Inventory
  • AP Rogues
  • Client Connection Counts
  • Client Connection Events
  • Switch Inventory
  • Switch Network
  • AP WiFi Calling
Controller Version Firmware version number of the controller.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
  • AP Events
  • AP Inventory
  • AP Alarms
  • Controller Inventory
  • AP Rogues
  • Client Connection Counts
  • Client Connection Events
  • Switch Inventory
  • Switch Network
  • AP WiFi Calling
Channel Bandwidth Channel width used by the AP's radio.
  • Client Info and Statistics
  • AP Info and Statistics
Device Type Indicates device type of the client.
  • Client Info and Statistics
  • Client Sessions
Disconnect Time Disconnect time of a session. Client Sessions
Domain Domains configured in the controller.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
  • AP Events
  • AP Inventory
  • AP Alarms
  • AP Rogues
  • Client Connection Counts
  • Client Connection Events
  • Switch Inventory
  • Switch Network
  • AP WiFi Calling
Event Code Code number for access point and controller events. AP Events
Event Description Description of the event. Client Connection Events
Event Type Description for access point and controller events. AP Events
Failed Message Info Message ID to indicate what failures step in whole connection. Client Connection Events
First Connection First connection time of a session. Client Sessions
FQDN of ePDG FQDN of operator epdg gateway. AP WiFi Calling
Hostname Hostname of the client.
  • Client Info and Statistics
  • Client Sessions
  • Applications
Is Stack Switch Inventory
Label User defined label / tag created by the MSP.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
  • AP Events
  • AP Inventory
  • AP Alarms
  • AP Rogues
  • Client Connection Counts
  • Client Connection Events
  • Switch Inventory
  • Switch Network
  • AP WiFi Calling
  • Controller Inventory
LAG Name LAG name. Switch Network
LAN Ports WAN Connectivity Description for this interface is WAN or LAN interface. AP Inventory
LAN Ports Physical Link Link attributes (up or down, speed, and duplex). AP Inventory
LAN Ports Physical Capability Description for this interface capability. AP Inventory
LAN Ports Port number for Ethernet interface. AP Inventory
Last Status Change Date and time of the last change in Connection Status of the access point. AP Inventory
Manufacturer Manufacturer of the client device.
  • Client Info and Statistics
  • Client Sessions
  • Client Connection Events
  • OS Manufacturer
Message IDs A sequence of message ID are recorded for this client session. Client Connection Events
Number of Ports Number of switch ports.
  • Switch Inventory
  • Switch Network
Number of Switch Units Number of units in the stack.
  • Switch Inventory
  • Switch Network
Operators Operator name. AP WiFi Calling
Optics Optics type of port. Switch Network
OS Type Operating System information for the Wi-Fi client.
  • Client Info and Statistics
  • Applications
OS Vendor Type Operating System vendor information for the Wi-Fi client.
  • Client Info and Statistics
  • Client Sessions
Peer is Ruckus AP RuckusAP support of remote device. Switch Network
POE Mode Setting 8023af PoE mode. AP Inventory
POE Under Powered AP power level. AP Inventory
POE Mode 8023af PoE power source. AP Inventory
Port Port of the application accessed by the Wi-Fi client. Applications
Port Admin Status Admin status of port. Switch Network
Port Link Status Link status of port. Switch Network
Port MAC MAC address of port. Switch Network
Port Name Name of port. Switch Network
Port Number Description of port. Switch Network
Port Speed Speed of port. Switch Network
Port Status Status of port, ex: CPU, Memory, Port Information (Network, PoE, Traffic, Packets In or Out). Switch Network
Port Untagged VLAN Untagged VLAN of port. Switch Network
Port VLANs Vlans of the port. Switch Network
Radio Indicates the radio frequency band: 2.4GHz or 5GHz.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
  • AP Events
  • Client Connection Counts
  • Client Connection Events
  • AP WiFi Calling
Reason Additional description for access point and controller alarms or events, if available.
  • AP Events
  • AP Alarms
Roaming Flag A flag to indicate this connection session is roaming or new join. Client Connection Events
Roaming Session ID A unique session ID that is created when a client roams to multiple APs within a short-enough time span that the client is connected to these APs simultaneously.
  • Client Info and Statistics
  • Client Sessions
Rogue AP MAC MAC Address of the detected Rogue AP. AP Rogues
Rogue Channel The Wi-Fi channel that the Rogue APs was operating on. AP Rogues
Rogue Encryption The Wi-Fi encryption and authentication method adopted by the rogue AP. AP Rogues
Rogue Radio The radio band (2.4GHz or 5GHz) that the rogue AP was operating on. AP Rogues
Rogue SSID SSID of the detected Rogue AP. AP Rogues
Rogue Type Possible types are: ignore, known, rogue, and malicious. Rogue AP
Router ID Swtich Identifier. Switch Network
Session ID ID string assigned to a session.
  • Client Info and Statistics
  • Client Sessions
Session Type Indicates whether the session is authorized or unauthorized.
  • Client Info and Statistics
  • Client Sessions
Severity Severity level for access point and controller alarms or events.
  • AP Events
  • AP Alarms
Spatial Stream Capability Client STBC capability.
  • Client Info and Statistics
  • AP Info and Statistics
SSID Service set identifier (SSID) configured in the controller.
  • Applications
  • AP Info and Statistics
  • Client Info and Statistics
  • Client Sessions
  • Client Connection Counts
  • Client Connection Events
  • AP WiFi Calling
Switch Firmware Firmware version of switch.
  • Switch Inventory
  • Switch Network
Switch Group Name Switch group name.
  • Switch Inventory
  • Switch Network
Switch IP Switch IP.
  • Switch Inventory
Switch MAC Switch MAC.
  • Switch Inventory
  • Switch Network
Switch Model Model of switch.
  • Switch Inventory
  • Switch Network
Switch Name Hostname of switch.
  • Switch Inventory
  • Switch Network
Switch Serial Serial number of switch.
  • Switch Inventory
  • Switch Network
Switch Status Connection status of switch.
  • Switch Inventory
  • Switch Network
Switch Subgroup Name The list of switch groups.
  • Switch Inventory
  • Switch Network
Switch Unit ID Switch unit ID. Switch Network
Switch Unit Status Status of switch unit, ex: Switch Unit Information (ID, Uptime, Status, Serial Number). Switch Network
Switch Uptime Uptime of switch.
  • Switch Inventory
  • Switch Network
System System ID of the controller or the SmartZone Cluster.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
  • AP Events
  • AP Inventory
  • AP Alarms
  • Controller Inventory
  • AP Rogues
  • Client Connection Counts
  • Client Connection Events
  • Switch Inventory
  • Switch Network
  • AP WiFi Calling

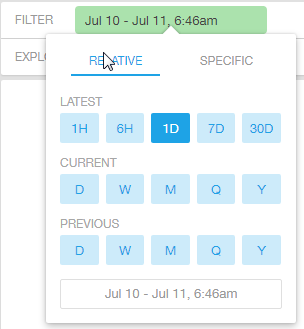

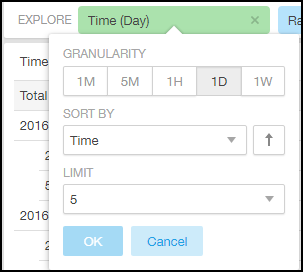

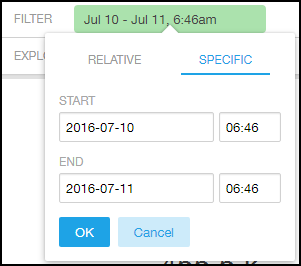

Time Allows the data to be viewed in terms of data points with timestamps. Time granularity of 1 minute, 15 minutes, 1 hour, 1 day, and 1 week can be chosen.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
  • AP Events
  • AP Inventory
  • AP Alarms
  • Controller Inventory
  • AP Rogues
  • Client Connection Counts
  • Client Connection Events
  • Switch Inventory
  • Switch Network
  • AP WiFi Calling
Tenant
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
  • Client Connection Counts
  • Client Connection Events
  • Switch Inventory
  • Switch Network
  • AP Events
  • AP Inventory
  • AP Alarms
  • Controller Inventory
  • AP WiFi Calling
  • AP Rogues
Tx Power Tx power of the WiFi interface.
  • Client Info and Statistics
  • AP Info and Statistics
Username Username of the user account associated with the Wi-Fi client.
  • Client Info and Statistics
  • Client Sessions
Wired Device MAC MAC address of the wired device. Switch Network
Wired Device Name Name of wired device. Switch Network
Wired Device Port Wired port interface. Switch Network
Wired Device Port Description Port description of the wired device. Switch Network
Wired Device Port MAC MAC address of wired port. Switch Network
Wired Device Port Type Type of wired port like Bridge, WLAN Access Point, Router, Station Only etc. Switch Network
Zone Zones configured in the controller.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
  • AP Events
  • AP Inventory
  • AP Alarms
  • AP Rogues
Zone Location Zone location.
  • Client Connection Counts
  • Client Connection Events
  • AP WiFi Calling
  • AP Inventory
  • AP Info and Statistics
  • Client Info and Statistics

Metrics Filter

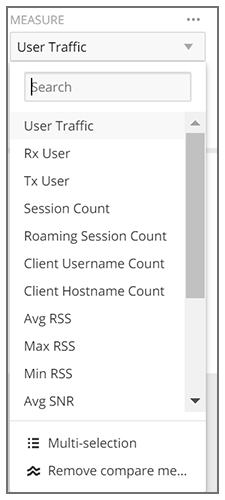

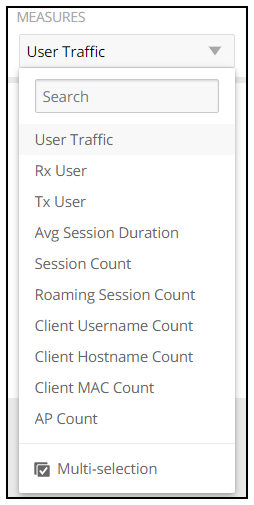

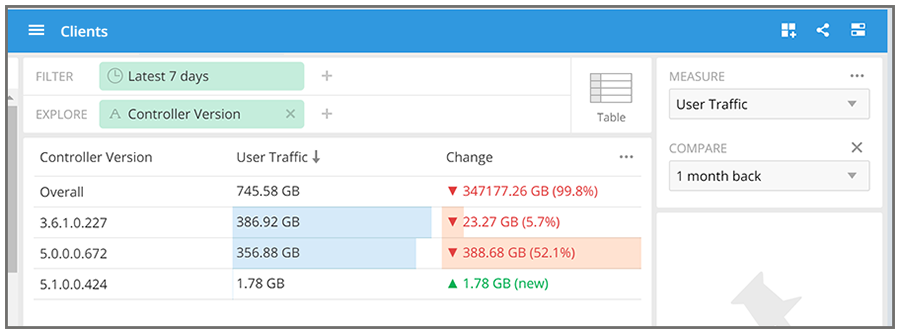

You can select one or more metrics by which you want to sort the selected dimension. Based on the selected Dataset, measures can vary.

Click the Table icon to view the Metrics tab. The applicable metrics are grouped under their respective Datasets. After you select a Dataset, the metrics grouped under that Dataset are displayed in the Metrics tab.

You can use the lists for each Dataset to view the supported metrics for that Dataset. The following table describes all the metrics that are supported on one or more Dataset in RUCKUS Analytics.

Table 3. Metrics
Metrics Name Description Supported Dataset
AP Count Unique number of access points.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
  • AP Events
  • AP Inventory
  • AP Alarms
AP Uptime Uptime percentage for an access point. AP Inventory
AP-to-SZ Ping Latency Average time, in milliseconds, for the AP to transmit a packet to the SZ controller, and receive the packet back. AP Info and Statistics
Attempt Count Client Connection Counts
Avg Airtime Busy Average of the airtime busy metric. AP Airtime and Hardware
Avg Airtime Idle Average of the airtime idle metric. AP Airtime and Hardware
Avg Airtime Rx Average of the airtime receive metric. AP Airtime and Hardware
Avg Airtime Tx Average of the airtime transmit metric. AP Airtime and Hardware
Avg Airtime Utilization Average of the total airtime utilization. AP Airtime and Hardware
Avg CPU Utilization Average CPU utilization for the controller.
  • Controller Inventory
  • AP Airtime and Hardware
Avg Capacity Per AP The saturated throughput estimate of a link. AP Info and Statistics
Avg Disk Free Average free disk space for the controller. Controller Inventory
Avg Disk Utilization Average disk utilization for the controller. Controller Inventory
Avg Memory Utilization Average memory utilization for the controller.
  • Controller Inventory
  • AP Airtime and Hardware
Avg 2.4 GHz Capacity Average speed of the 2.4 GHz. AP Info and Statistics
Avg 5 GHz Capacity Average speed of the 5 GHz. AP Info and Statistics
Avg 6(5) GHz Capacity Average speed of the 6(5) GHz. AP Info and Statistics
Avg AP-to-Client Latency The time taken by a packet from AP to Client. AP Info and Statistics
Avg Storage Utilization The percentage of AP storage utilization. AP Airtime and Hardware
Avg Noise Floor Average noise floor power in dBm. Client Info and Statistics
Avg RSS Average received signal strength of the access point in dBm. Client Info and Statistics
Avg Session Duration Average time duration for a session. Client Sessions
Avg SNR Average signal to noise ratio at the access point in dB. Client Info and Statistics
Avg Tx Rate Average Tx rate. AP Airtime and Hardware
Avg Rx Rate Average Rx rate. AP Airtime and Hardware
Avg Throughput Estimate Average throughput estimate for the Wi-Fi client. Client Info and Statistics
Call Duration Duration of the WiFi call. AP WiFi Calling
Client Hostname Name of the client.
  • Client Info and Statistics
  • Client Sessions
Client MAC Count Unique number of Wi-Fi clients.
  • Applications
  • Client Info and Statistics
  • Client Sessions
  • Client Connection Events
Client Throughput Client Info and Statistics
Client Username Name of the user.
  • Client Info and Statistics
  • Client Sessions
Controller Count Unique number of controllers. Controller Inventory
Count Client count.
  • AP Events
  • AP Alarms
  • Client Connection Events
CPU (%) CPU utilization of switch. Switch Inventory
CRC Crc Error. Switch Network
Data Frames (Downlink) AP Info and Statistics
Data Frames (Uplink) AP Info and Statistics
Downlink Traffic Bytes received by client. AP WiFi Calling
Failed Associations Number of failed associations. AP Info and Statistics
Failed Authentications Number of failed open authentications. AP Info and Statistics
Failure Count Client Connection Counts
Hostname Count Number of hostnames.
  • Client Sessions
  • Client Info and Statistics
In Discards Input discards of port. Switch Network
In Errors Input Errors. Switch Network
Mgmt Traffic Traffic volume, which is transmitted and received in IEEE 802.11 control and management frames; this includes all unicast, multicast, and broadcast traffic.
  • AP Info and Statistics
  • AP Airtime and Hardware
Mgmt Traffic (Downlink)
  • AP Info and Statistics
  • AP Airtime and Hardware
Mgmt Traffic (Uplink)
  • AP Info and Statistics
  • AP Airtime and Hardware
Mgmt Frames (Uplink) AP Info and Statistics
Mgmt Frames (Downlink) AP Info and Statistics
Max Offline Duration The maximum offline duration within the selected time range. AP Inventory
Max Rogue SNR The maximum detected signal to noise of the rogue AP. AP Rogues
Max RSS Maximum received signal strength of the access point in dBm. Client Info and Statistics
Max SNR Maximum signal to noise ratio at the access point in dB. Client Info and Statistics
Memory (%) Switch Inventory
Min RSS Minimum received signal strength of the access point in dBm. Client Info and Statistics
Min SNR Minimum signal to noise ratio at the access point in dB. Client Info and Statistics
Offline Duration Switch Inventory
Out Errors Output Errors. Switch Network
PoE Free (mW) PoE unallocated capacity of switch. Switch Inventory
PoE Utilization (%) Percentage of PoE allocated capacity of switch. Switch Inventory
PoE Usage (mW) PoE allocated capacity of switch. Switch Inventory
PoE Total (mW) Total PoE capacity of switch. Switch Inventory
Port Count Number of ports. Switch Network
Port PoE Utilization (%) Percentage of inline power consumed by the port. Switch Network
Reboot Count Number of times AP rebooted. AP Events
Roaming Session Count The number of roaming sessions for a specific client. A roaming session occurs when a client roams quickly enough to remain connected to multiple APs simultaneously. If you find a client that has a large number of roaming sessions, you can use various dimensions in Data Studio to obtain details about the APs.
  • Client Info and Statistics
  • Client Sessions
Rogue AP Count The number of rogue APs detected by all the APs in your network. AP Rogues
Rx Avg 2.4GHz MCS Rate 2.4 GHz Radio median RX MCS rate in this bin. AP Info and Statistics
Rx Avg 5GHz MCS Rate 5 GHz Radio median RX MCS rate in this bin. AP Info and Statistics
Rx Avg 6(5)GHz MCS Rate 6(5) GHz Radio median RX MCS rate in this bin. AP Info and Statistics
Rx Avg AP MCS Rate Radio median RX MCS rate in this bin. AP Info and Statistics
Rx Client MCS Rate Client median RX MCS rate in this bin. Client Info and Statistics
Rx Failures Receive packets which failed to be processed due to insufficient buffer in AP. AP Info and Statistics
Rx Management Traffic volume, which is received by AP (Access Point) in IEEE 802.11 control and management frames; this includes all unicast, multicast, and broadcast traffic.
  • AP Info and Statistics
  • AP Airtime and Hardware
Rx Total Sum of the received user and management traffic.
  • AP Info and Statistics
  • AP Airtime and Hardware
Rx User Traffic volume, which is received by AP in IEEE 802.11 MAC Service Data Unit (MSDU) data frames; this includes all unicast, multicast, and broadcast traffic.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
Session Count Number of unique sessions.
  • Client Info and Statistics
  • Client Sessions
Successful Associations Number of successful associations. AP Info and Statistics
Successful Authentications Number of successful open authentications. AP Info and Statistics
Successful Authentication Ratio Ratio of number of successful open authentications over total number of open authentications. AP Info and Statistics
Success Count Client Connection Counts
Switch Count Unique number of Switches. Switch Inventory
Switch Unit Count Unique number of Switch units. Switch Network
System Count Unique number of systems. Controller Inventory
Total Data Frames Ratio Percentage of all transmit and receive packets that are data. AP Info and Statistics
Total Management Frames Ratio Percentage of all transmit and receive packets that are management. AP Info and Statistics
Total Session Duration Client Sessions
Total Traffic Total of sent and received bytes by client. AP WiFi Calling
Traffic (Total) Sum of the user and management traffic.
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Switch Network
Traffic (Downlink) Bytes received.
  • AP Airtime and Hardware
  • AP Info and Statistics
  • Switch Network
Traffic (Uplink) Bytes sent.
  • AP Airtime and Hardware
  • AP Info and Statistics
  • Switch Network
Tx Avg 2.4GHz MCS Rate 2.4 GHz Radio median Tx MCS rate. AP Info and Statistics
Tx Avg 5GHz MCS Rate 5 GHz Radio median Tx MCS rate. AP Info and Statistics
Tx Avg 6(5)GHz MCS Rate 6(5) GHz Radio median Tx MCS rate. AP Info and Statistics
Tx Avg AP MCS Rate Radio median Tx MCS rate. AP Info and Statistics
TxBroadcastFrames Number of broadcast packets transmitted by the network. AP Info and Statistics
Tx Client MCS Rate Client median TX MCS rate. Client Info and Statistics
TxDropDataFrames Transmit data frames that are dropped by the message queue. AP Info and Statistics
Tx Failures Transmit packets which failed to be processed due to insufficient buffer in AP. AP Info and Statistics
Tx Management Traffic volume, which is transmitted by AP (Access Point) in IEEE 802.11 control and management frames; this includes all unicast, multicast, and broadcast traffic.
  • AP Info and Statistics
  • AP Airtime and Hardware
TxMulticastFrames Number of multicast packets transmitted by the network. AP Info and Statistics
Tx PER Radio Tx Packet Error Rate in this bin. Client Info and Statistics
Tx Total Sum of the transmit user and management traffic.
  • AP Info and Statistics
  • AP Airtime and Hardware
TxUnicastFrames The number of data packets transmitted by the network that are not broadcast or multicast packets.  AP Info and Statistics
Tx User Traffic volume, which is transmitted by AP (Access Point) in IEEE 802.11 MAC Service Data Unit (MSDU) data frames; this includes all unicast, multicast, and broadcast traffic.
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
Uplink Traffic Bytes sent by client. AP WiFi Calling
Username Count Unique number of usernames.
  • Client Sessions
  • Client Info and Statistics
User Traffic Traffic volume, which is transmitted and received in IEEE 802.11 MAC Service Data Unit (MSDU) data frames; this includes all unicast, multicast, and broadcast traffic. User Traffic = Rx User + Tx User
  • Applications
  • AP Info and Statistics
  • AP Airtime and Hardware
  • Client Info and Statistics
  • Client Sessions
User Traffic(Total) Total of sent and received bytes by user.
  • Client Sessions
  • Client Info and Statistics
  • AP Info and Statistics
  • AP Airtime and Hardware
User Traffic (Downlink) Bytes received by the user.
  • Client Sessions
  • Client Info and Statistics
  • AP Info and Statistics
  • AP Airtime and Hardware
User Traffic (Uplink) Bytes sent by the user.
  • Client Sessions
  • Client Info and Statistics
  • AP Info and Statistics
  • AP Airtime and Hardware
