The Wireless Network Insights page provides historical insights into wireless network activity, including AP and client statistics, traffic distribution, SSID usage, radio utilization, and traffic trends over the selected time range.

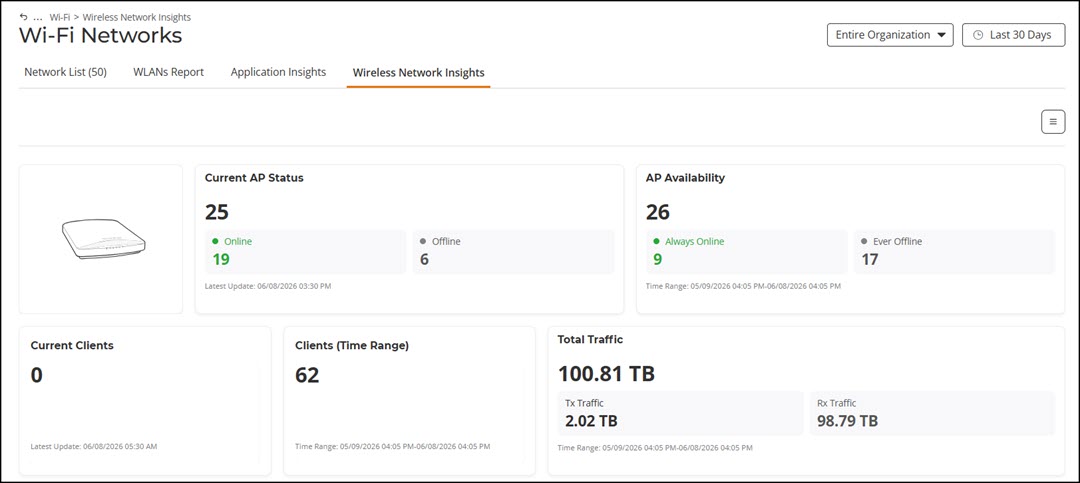

To view the Wireless Report page from Wi-Fi main page, on the navigation bar, select Wi-Fi > Wi-Fi Networks > Wireless Network Insights.

To view the wireless netwok insights from Business Insights main page, refer to Wireless Report.

The Wireless Network Insights page has the following components:

• Overview tile
• Top APs by Traffic tile
• Top APs by Traffic Over Time tile
• Top APs by Client Count tile
• Top APs by Client Count Over Time tile
• Network Usage Overview tile
• Traffic Trend tile
• Traffic Over Time Table

The data displayed is for the selected time period in the Date and Time filter.

Some of the tiles have the option to view the report in graphs and tables. The Graph and Table tabs are displayed on top of the applicable tiles. By default, in those tiles, the reports are displayed in graphical format. If you want to view the report in table format, click the Table tab.

The data displayed on this page is based on the selected Date and Time filter and Network Hierarchy filter. Use the Date and Time filter in the upper-right corner to select a predefined time range or configure a custom date and time range. Use the Network Hierarchy filter to refine the displayed data by network scope.

The top right corner of the page also displays options to download reports in PDF and PNG formats. You can also share the report via e-mails on-demand or periodically by configuring a schedule (daily, weekly, or monthly).

All of the tiles described above are explained in detail on the Wireless Report page under the Reports section. Refer to Wireless Report

.
