Viewing and Managing DPSK Passphrases for an Identity

You can view and manage DPSK passphrases for an identity from the DPSK Passphrases tab on the identity details page. The tab displays the Dynamic Pre-Shared Key (DPSK) passphrases generated for the selected identity and allows you to view, manage, and revoke passphrases that control network access for the identity.

Note: A banner at the top of the tab indicates the portal service profile from which the DPSK passphrases are generated.
Complete the following steps to view and manage DPSK passphrases:
  1. From the navigation bar, select Clients > Identity Management > Identities List.
    The Identity Management page displays the Identities sub-tab.
  2. Click the name of the identity you want to modify.
    The identity's Overview page is displayed.
  3. Select the DPSK Passphrases tab.

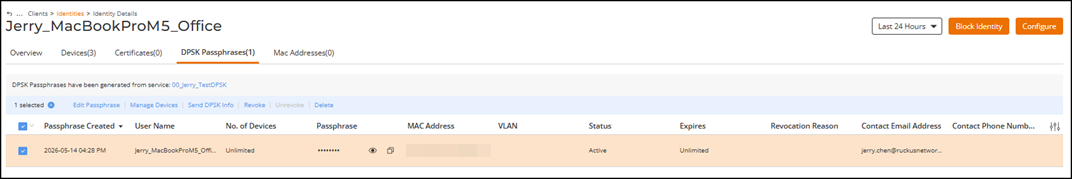

    A table displaying the following details for DPSK passphrases associated with the identity is displayed:
    DPSK Passphrases
    • Passphrase Created: Displays the date and time when the passphrase was created.
    • User Name: Displays the user name associated with the passphrase.
    • Identity Group: Displays the linked identity group as a hyperlink. Clicking the hyperlink displays the Identity Group Details page.
    • Identity: Displays the linked identity as a hyperlink. Clicking the hyperlink displays the Identity Details page.
    • No. of Devices: Displays the number of devices currently using the passphrase. Displays Unlimited when no device limit is applied.
    • Passphrase: Displays the passphrase in a masked format. It includes icons to view or copy the passphrase. You can view the passphrase by clicking the icon and copy it using the icon.
    • MAC Address: Displays the MAC address of the device that used this passphrase. Displays a blank value if it has not yet been used.
    • VLAN: Displays the VLAN assigned to the identity or device.
    • Status: Displays the current status of the passphrase.
    • Expires: Displays when the passphrase expires. Displays Unlimited if no expiration date is configured.
    • Revocation Reason: Displays the reason the passphrase was revoked (if applicable).
    • Contact Email Address: Displays the email address associated with the passphrase. It is used for auto-send notification emails if enabled.
    • Contact Phone Number: Displays the phone number associated with the passphrase. It is used for SMS notifications (requires a valid number).
  4. (Optional) Select one or more passphrases to perform the following management tasks:
    • Click Edit Passphrase to modify the passphrase configuration.
    • Click Manage Devices to add or remove specific devices.
    • Click Send DPSK Info to manually send an SMS or email containing network and credential information to the user.
    • Click Revoke or Unrevoke to block or restore network access for devices using the selected passphrase.
    • Click Delete to permanently remove a passphrase and all associated metadata.
