Wireless: Traffic by Applications and Access Points
The Wireless: Traffic by Applications and Access Points report provides a comprehensive view of wireless data usage by correlating application-level traffic with access points. This report helps identify high-bandwidth applications and evaluate network load distribution at the AP level.
- On the navigation bar, select . The Reports page is displayed.
- Click View on the Wireless: Traffic by Applications and Access Points tile under Adhoc Reports. The Wireless: Traffic by Applications and Access Points page is displayed.

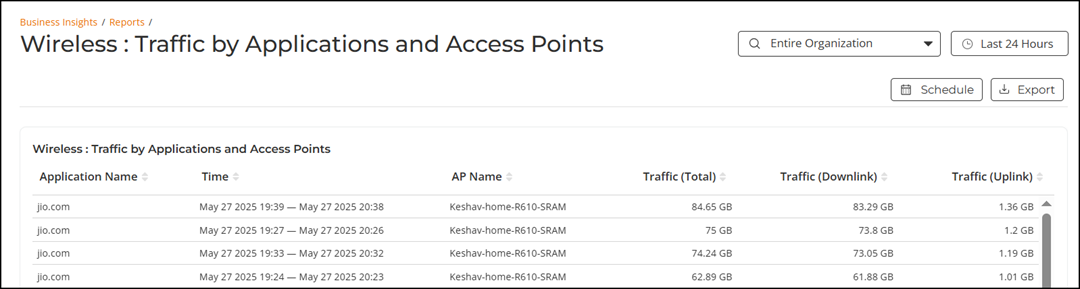

The Wireless: Traffic by Applications and Access Points tabular report includes the following columns:
- Application Name: Displays the name of the application generating the traffic.
- Time: Displays the time range during which the data is collected.
- AP Name: Displays the name of the access point from which the data is collected.
- Traffic (Total): Displays the total amount of traffic (uplink + downlink) associated with the application.
- Trafic (Downlink): Displays the volume of data sent from the access point to clients for the specified application.
- Trafic (Uplink): Displays the volume of data sent from clients to the access point for the specified application.
The top right corner of the Wireless: Traffic by Applications and Access Points page displays options to export reports in PDF or PNG formats and configure scheduled email delivery to share reports with selected recipients. You can share the report with recipients over e-mails on-demand or periodically by configuring a schedule (daily, weekly and monthly).
