The Reports
Overview page displays the reports of the complete network and the devices
connected to it.
Complete the following steps to view the
Reports Overview page.
On the navigation bar, select Business
Insights > Reports. The Reports page is displayed.
Click View on the
Overview tile. The Reports
Overview page is displayed.
The Reports Overview page is the main page that displays an
overview of some important statistics of your Wi-Fi network.
The top right corner of the Reports
Overview page displays options to share and export reports in PDF and PNG
formats. You can also share them with recipients over e-mails on-demand or periodically
by configuring a schedule (daily, weekly and monthly). To download or create a schedule,
refer to Navigating the RUCKUS One Portal.
The Date and Time
filter are displayed in the upper-right corner of the Content
panel. This option controls the elements displayed within the
Content Panel. To modify this option, refer to Navigating the RUCKUS One Portal.
The top portion of the Reports
Overview shows the following tiles:
Access Points: Displays the
total count of APs, online APs, and offline APs in the network for the selected
time period in the Date and Time filter. For more
information, refer to Access Points Report.
Switches: Displays the total
count of switches, online switches, and offline switches in the network for the
selected time period in the Date and Time filter. For more
information, refer to Switches Report.
Clients: Displays the
total count of clients, unique wireless sessions, and wireless applications
accessed by the clients in the network for the selected time period in the
Date and Time filter. For more information on wireless,
refer to Wireless Report,
and on applications, refer to Applications Report.

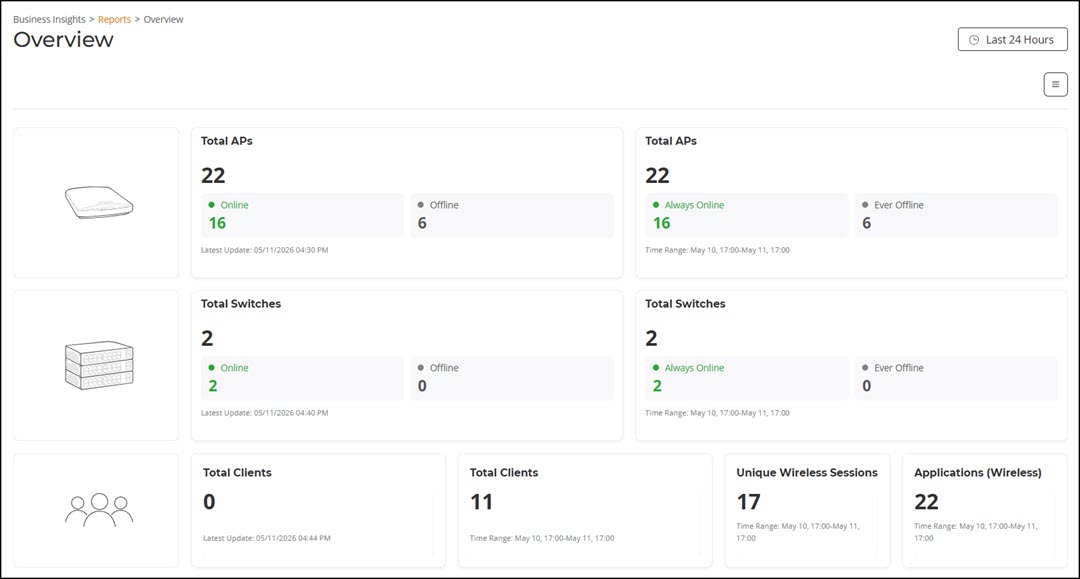

Reports Overview Page - Top
Portion
The bottom portion of the
Reports Overview shows the following tiles:
Rx Traffic:
Displays the total inbound traffic in the network for the selected time period
in the Date and Time filter.
Tx Traffic:
Displays the total outbound traffic from the network for the selected time
period in the Date and Time filter.
Average Rx
Traffic: Displays the average speed of the inbound traffic in the
network for the selected time period in the Date and Time
filter.
Average Tx
Traffic: Displays the average speed of the outbound traffic from
the network for the selected time period in the Date and
Time filter.
WLANs:
Displays the top SSIDs by traffic for the selected time period in the
Date and Time filter. For more information, refer to
WLAN Report.
Pause the pointer over a portion of the donut to view the traffic data.
Applications: Shows the applications being used more
frequently by the clients in the network for the selected time period in the
Date and Time filter. For more information, refer to
Applications Report. You
can select the number of applications displayed per page from the drop down at
the bottom of the page. The range is from 10 applications per tile to 100
applications per tile.
