Viewing the Wired AP Clients List

You can view, monitor, and manage wired access points within your network from the AP Clients List page.

To view the list of wired APs, complete the following steps.
  1. On the RUCKUS One web interface, select Clients > Wired > AP Clients List.
    The AP Clients page displays the following information for AP wired clients that are currently associated with your managed APs:

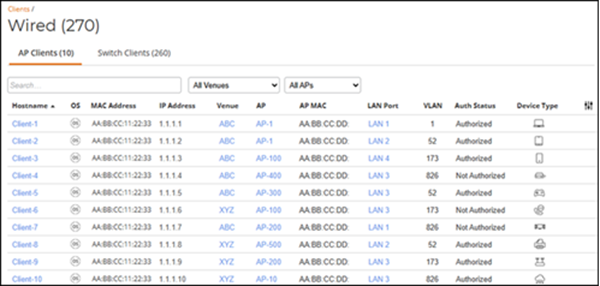

    Viewing AP Clients
    • Hostname: Displays the hostname of the AP wired client. Click the AP wired client name (Hostname). The Overview page for the AP wired client is displayed where you can view details such as the Client Details, Connection, and Events.
    • OS: Displays as icon representing the operating system running on the AP wired client.
    • MAC Address: Displays the MAC address of the AP wired client.
    • IP Address: Displays the IP address of the AP wired client.
    • Venue: Displays the venue the AP wired client and the AP are associated with.
    • AP: Displays the AP name.
    • AP MAC: Displays the MAC address of the AP.
    • LAN Port: Displays the AP LAN port number to which the AP wired client is connected.

      You can click on the port number (hyperlink) to view the LAN port configuration and edit the Ethernet Port Profile if necessary.

    • VLAN: Displays the VLAN Untag ID assigned to the AP LAN port.
    • Device Type: Displays an icon representing the type of device (laptop, router, or other user equipment) connected to the AP.
    • Auth Status: Displays whether the AP wired client is authorized to access the network.
    Note: You can click the hyperlinks (items in blue) to view detailed information.
