Viewing Client Insights

The Client Insights page provides detailed, time-range-based analytics for the selected client, including traffic usage, application distribution, RF performance trends, and session details.

Complete the following steps to view the Client Insights page:

On the navigation bar, select Clients > Wireless > Wireless Clients List. The Wireless Clients List page is displayed.
Click Hostname attribute of the required client. The Wireless Clients details page is displayed.
Click Insights tab.

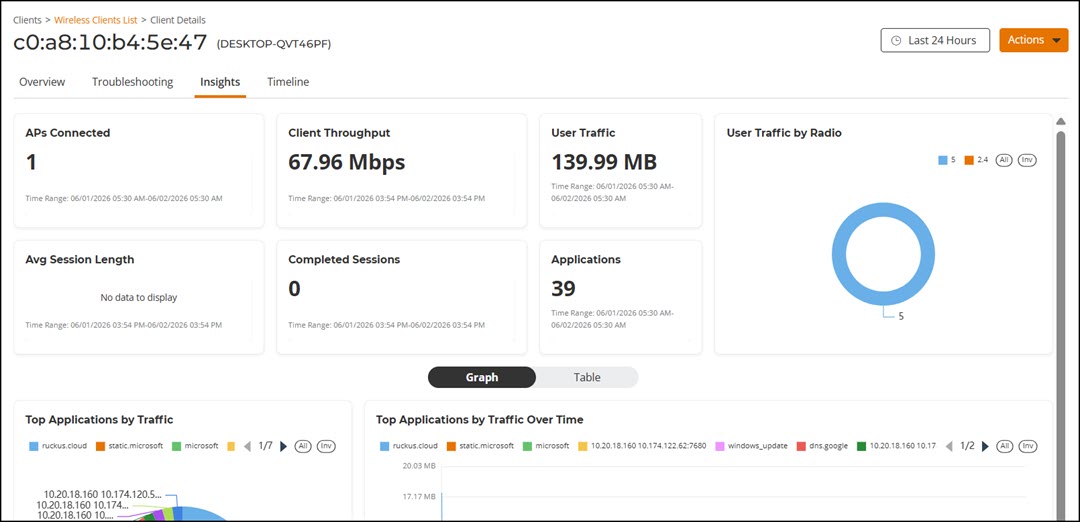

Client Insights Page (Upper Portion Only)

The Client Insights page has the following components:

Overview tile
User Traffic by Radio tile
Top Applications by Traffic tile
Traffic Trend Tile
RSS Trend tile
SNR Trend tile
Sessions table

The data displayed on this page is based on the selected date and time range. Use the Date and Time filter in the upper-right corner to select a predefined time range or configure a custom date and time range.

Note: All counts shown in bar charts, pie charts and tables are exact counts. The counts in trend charts are approximate.

Some of the tiles have the option to view the report in graphs and tables. The Graph and Table icons are displayed on top of the applicable tiles. By default, in those tiles, the reports are displayed in graphical format. If you want to view the report in table format, click the Table icon.

Overview Tile

The Overview tile provides a general overview of the selected client and displays the count of total APs connected, client throughput, user traffic, average session length, completed sessions, and applications for the selected time period in the Date and Time filter.

User Traffic by Radio Tile

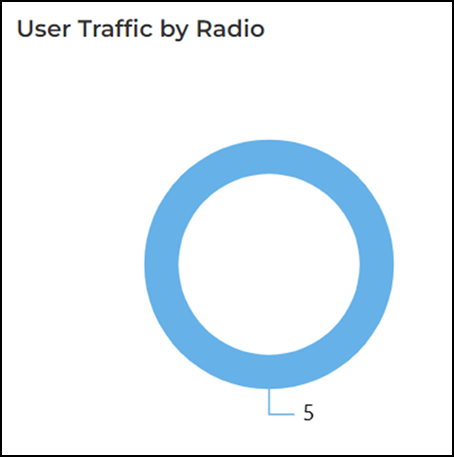

The User Traffic by Radio tile contains a graph that displays the traffic by radio over time for the selected time period in the Date and Time filter. The graph displays the total traffic information for the radio band configured on the client AP. Pausing the pointer over the graph displays an information box with the details of the radio band at that time and date.

Top Applications by Traffic Tile

The Top Applications by Traffic tile contains two panes Top Applications by Traffic and Top Applications by Traffic Over Time.

The Top Applications by Traffic pane displays a donut chart. The donut chart display the top applications with the largest traffic in the AP, along with the received and transmitted traffic for the selected time period in the Date and Time filter. Pausing the pointer over the chart displays an information box with the details of the selected application.

The Top Applications by Traffic Over Time pane displays a graph. The graph display the top applications with the largest traffic in the AP, along with the received and transmitted traffic for the selected time period in the Date and Time filter. Pausing the pointer over the graph displays an information box with the details of the application at that time and date. Click any of the colored squares to hide the selected application in the graph. The information icon that is hidden is displayed in gray.

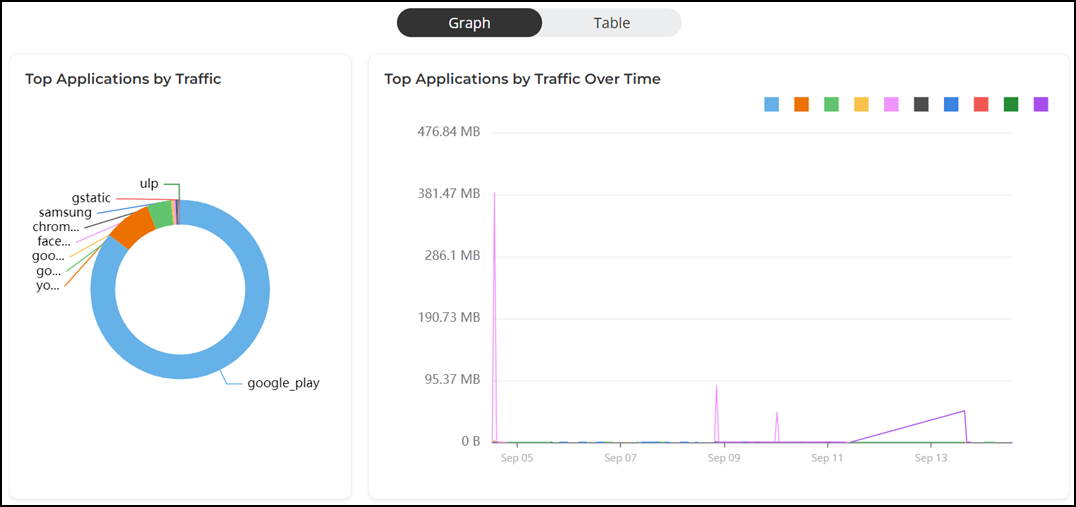

Top Applications by Traffic Tile - Chart and Graph

To view all the applications, click Table icon. The table is displayed with the application name, port, downlink traffic, uplink traffic, and total traffic for the selected time period in the Date and Time filter.

Use the graph and table icons to toggle between the chart and table views.

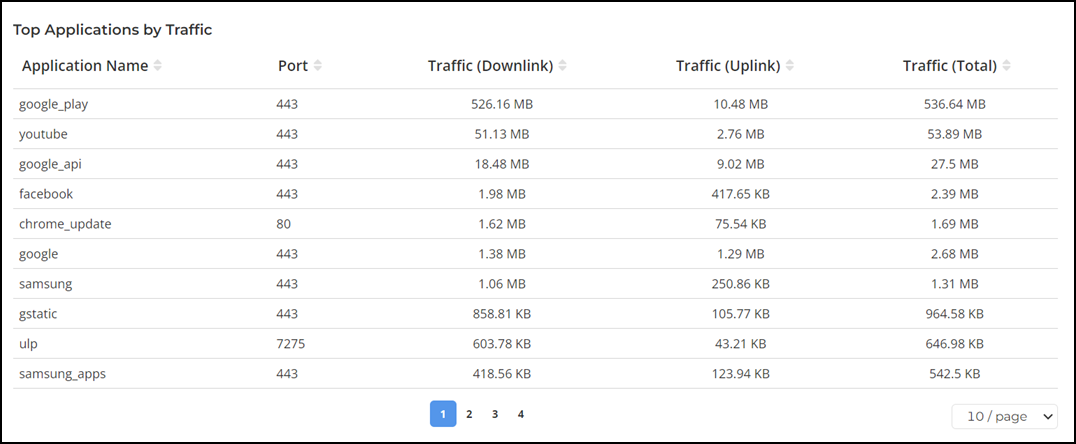

Top Applications by Traffic Tile - Table

Traffic Trend Tile

The Traffic Trend tile contains following sub tiles:

Traffic by Usage tile
Traffic by Radio tile

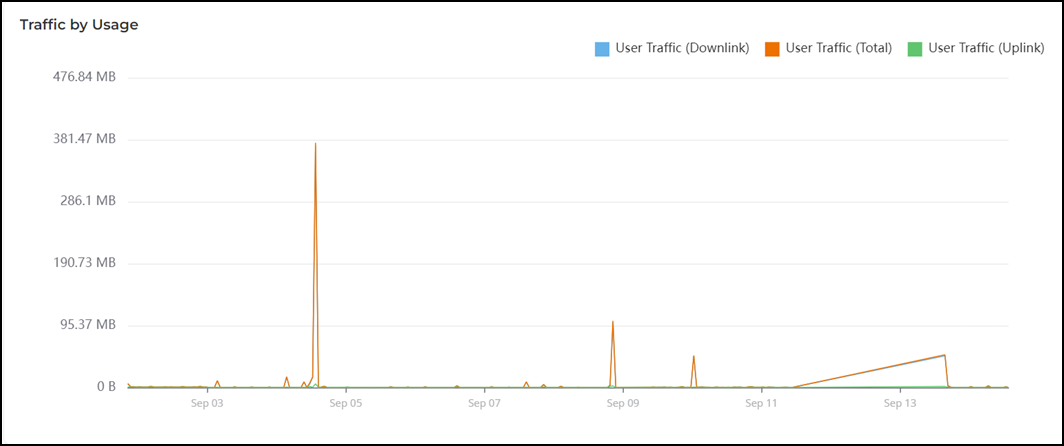

Traffic by Usage: This tile contains a graph that displays the traffic by usage over time for the selected time period in the Date and Time filter. The graph displays the information of the total downlink traffic, total uplink traffic, and total user traffic. Pausing the pointer over the graph displays an information box with the details of the traffic at that time and date. Click any of the colored squares to hide the selected traffic in the graph. The information icon that is hidden is displayed in gray.

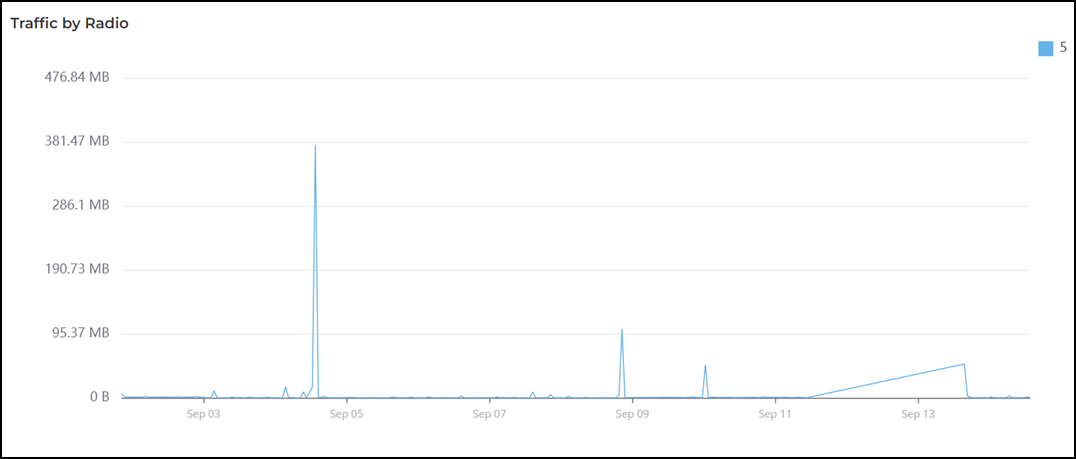

Traffic by Radio: This tile contains a graph that displays the traffic by radio over time for the selected time period in the Date and Time filter. The graph displays the total traffic information for the radio band configured on the client AP. Pausing the pointer over the graph displays an information box with the details of the radio band at that time and date.

RSS Trend Tile

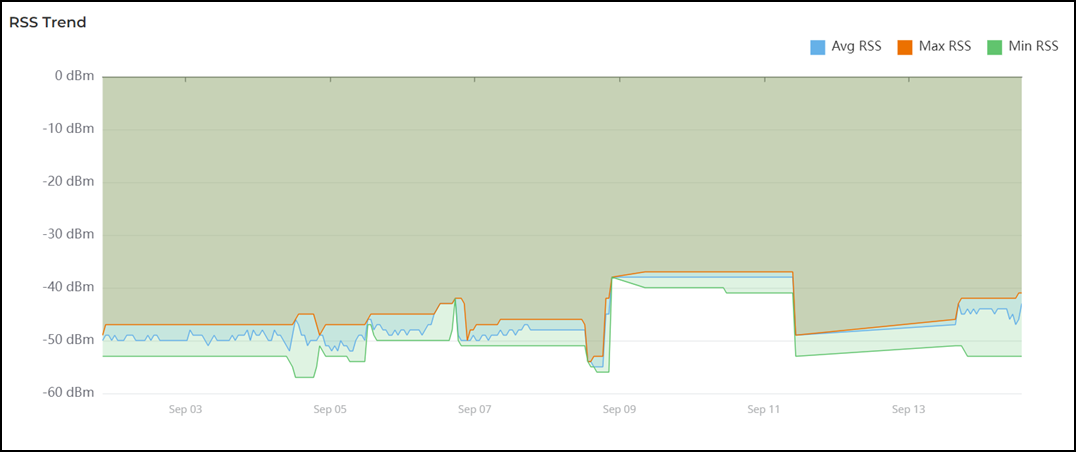

The RSS Trend tile contains a graph that displays the received signal strength trends over time for the selected client AP. This data is displayed only for the selected time period in the Date and Time filter. Pausing the pointer over the graph displays an information box with the RSS details at that time and date. Click any of the colored squares to hide the selected RSS details in the graph. The information icon that is hidden is displayed in gray.

SNR Trend Tile

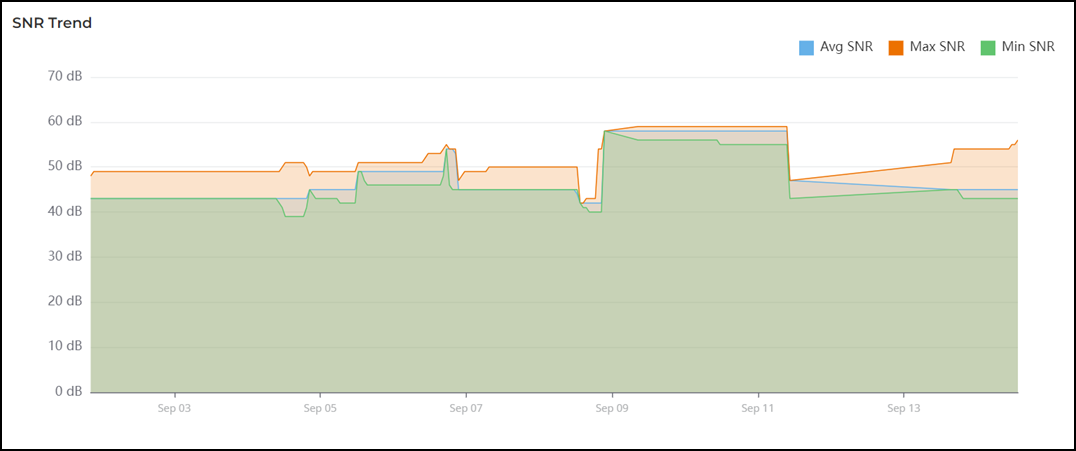

The SNR Trend tile contains a graph that displays the signal-to-noise ratio over time for selected client AP. This data is displayed only for the selected time period in the Date and Time filter. Pausing the pointer over the graph displays an information box with the SNR details at that time and date. Click any of the colored squares to hide the selected SNR details in the graph. The information icon that is hidden is displayed in gray.

Sessions Table

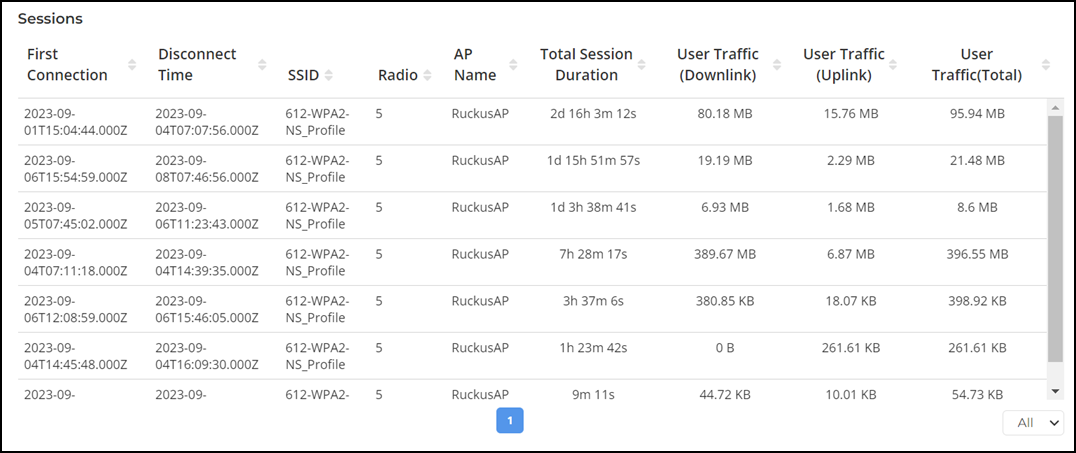

The Sessions table displays information on the number of client sessions specified for the selected client AP between time periods. This data is displayed only for the selected time period in the Date and Time filter. The table displays attributes such as first connection, disconnection time, session duration, host name, SSID, radio, inbound user (Rx), outbound user (Tx), and user traffic.
