Your RUCKUS One subscription information
shows the type of license that you purchased, the number of APs, switches, and analytics
that your account can support, and details about your license subscriptions.
Complete the following steps to view your
RUCKUS One subscription.
RUCKUS One now offers
visibility into unactivated purchases. On the Pending Activations tab,
you’ll find a list of unactivated subscriptions grouped by purchase orders received
by RUCKUS. You can select a purchase order group (also known as the SPA Activation Code) and be
redirected to the RUCKUS Support Portal to activate the line items of the Purchase
Order. Additionally, the Pending
Activations tab provides details for each purchase order line item,
including the last date by which users can select the subscription start date. For
more information, refer to the RUCKUS One Subscriptions Licensing
Guide.
On the navigation bar, select
Administration > Account
Management > Subscriptions.

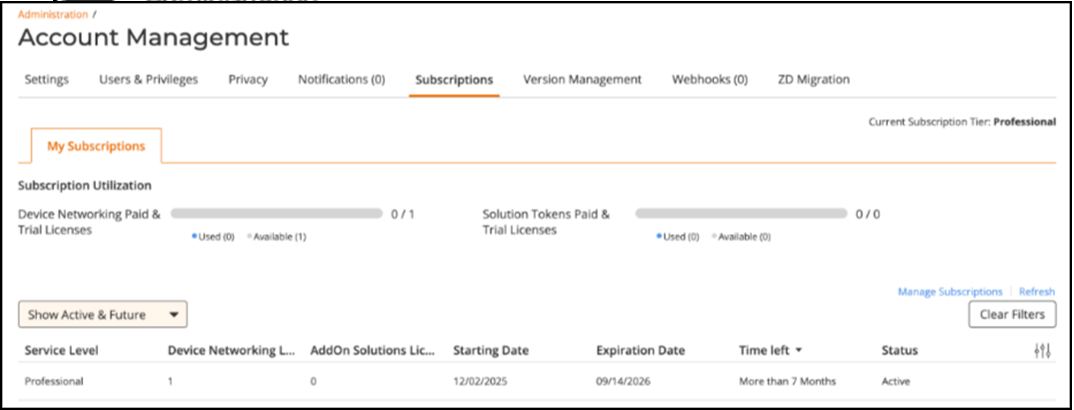

The Subscriptions page is displayed, defaulting to the My Subscriptions
sub-tab.Review the information displayed on the My Subscriptions
sub-tab.
Subscription
Utilization: This section provides a visual and
numerical breakdown of how many Device Networking licenses are in use
and how many remain available.
Device
Networking - Paid & Trial Licenses: This
section shows the utilization of paid and trial subscription
licenses assigned to the account.
Used: Displays the number of licenses
consumed.
Available: Displays the number of paid
licenses that are not yet consumed.
The
numerical count on the right side of the usage bar shows
the number of paid and trial licenses used and the total
number of available licenses.
AddOn
Solutions - Paid & Trial Licenses: This
section shows the utilization of Paid and Trial licenses
assigned to the account for AddOn Solutions.
Used: Displays the number of licenses
consumed.
Available: Displays the number of Paid
Licenses that are not yet consumed.
The
numerical count on the right side of the usage bar shows
the number of Paid and Trial Licenses used and the total
number of available licenses.
Part
Number: Displays the part number (SKU) of the purchased
subscription.
License
Count: Displays the number of licenses.
Starting
Date: Displays the subscription activation date.
Expiration
Date: Displays the subscription expiration date.
Time
left: Displays the remaining time until the subscription
expires.
Status: Displays the subscription
status.
You can customize which fields
appear in the table by clicking the icon and selecting or deselecting the desired column names. Optionally,
you can click Reset to default to have the default
subset of columns appear in the table.
You can filter the list of
subscriptions by selecting one of the options from the
Status drop-down menu. The status options include
Show All, Show Active, Show Expired, Show Future, and Show Active &
Future (default selection).
You can sort the list of
subscriptions by any attribute; simply click the desired column header to
reorder the list. To remove all filters and sorting, click Clear
Filters.
(Optional) Click
Manage Subscriptions to open the Cloud Subscription
Purchases web page.
(Optional) Click
Refresh to retrieve all activated
subscriptions.
Note: If your purchased
subscriptions do not appear, click Refresh.
Click the Pending
Activations sub-tab.
The Pending Activations
page is displayed.
The table includes the following fields:
Order Date: Displays the purchase date.
SPA Activation Code: Displays the activation
code linked to your purchase order. This interactive link redirects
you to the RUCKUS Support Portal for activation.
Part Number: Displays the SKU.
Part Number Description: Displays license
type and term details.
Quantity: Displays the number of units
purchased.
Subscription Term: Displays the duration in
months.
Last Day of Grace Activation Period: Displays
the final date on which a custom start date may be selected.
If activation occurs before this deadline, the start date can be any
date from the current date through the activation period end date. If
activation occurs after this deadline, the start date is automatically set
to the activation period end date.
Click the Compliance sub-tab.
The Compliance page
is displayed.Subscriptions -
Compliance
Review the details in the
Device Networking
Licenses panel. This panel contains two tabs: Summary and
My
Account.
Summary:
Displays a complete view of Device Networking Licenses, including
licenses purchased, used, available, and out-of-compliance for Paid and
Trial Licenses.
Purchased
Licenses: Displays active licenses in the RUCKUS One pool.
Active Licenses - Paid: Displays the
total number of Paid Licenses allocated to the account.
The nearest‑expiry quantity appears in orange.
Active Licenses - Trial: Displays the
number of Trial Licenses allocated to the account. The
nearest‑expiry quantity appears in orange.
Licenses
Used: Displays the licenses used by all devices
configured in My Account.
Used
by My Account - Paid: Displays the
number of Paid Licenses consumed by devices configured
under the account.
Used
by My Account - Trial: Displays the
number of Trial Licenses consumed.
Licenses
Available: Displays the licenses available to My
Account for configuring additional devices.
Note: Licenses available may have different
expiration dates.
Available to My Account - Paid:
Displays the number of Paid Licenses available for use
by the account.
Available to My Account - Trial:
Displays the number of Trial Licenses available for use
by the account.
License
Out‑of‑Compliance: Indicates that currently
configured devices in My Account require more licenses than the
number of active licenses available.
Out‑of‑Compliance by My Account - Paid +
Trial: Displays the number of licenses
required beyond the active licenses available.
Note: If this value is greater than
zero, a icon appears next to the
Device Networking Licenses panel header to
indicate that the account has out‑of‑compliance
licenses. If the value is zero, a icon appears, indicating
that the account is fully compliant.
My
Account: Shows devices configured and licenses required
by each device type.
Devices: Displays the device type.
Configured: Displays the number of configured
devices.
Licenses
Required: Displays the number of licenses
required, depending on device type and configuration.
License Expiration: If any licenses are about to expire or
have expired, a banner is displayed at the top of the page.
Paid licenses do not have a grace
period.
Thirty days before expiration, an
alarm is raised and a weekly email notification is sent to the administrator
until the date of expiration. The text in the license expiration banner changes
depending on the status of the license and the number of days before it
expires.
TEMP licenses are valid for 90
days with no grace period.
Note: After the subscription
expires, all the ports of the switch, except the ports connected to RUCKUS
APs, switches, and the uplink port that is being used to connect to the
Cloud, are disabled. However, the switch remains connected to the Cloud.
With the license renewal, you can restore service on the switch without
losing the configurations.
