A client ID is used to uniquely identify an app to the Google OAuth servers. If your app is deployed on multiple platforms, each platform will require its own client ID.

1. Go to the Google Cloud Console (https://console.developers.google.com/projectselector2/apis/credentials) to generate the Client ID and Client Secret.
   Note: According to the Google secure browsers policy, OAuth authentication is not permitted in embedded web views. To comply with this policy, RUCKUS redirects to a pre-populated captive portal to authenticate using your Google credentials. If the redirection does not happen automatically, copy and paste the captive portal link into a full-featured supported browser, such as Google Chrome, Mozilla Firefox, Apple Safari, or Microsoft Edge.

   You are redirected to authenticate using your Google credentials. After successful authentication, the Google Cloud welcome page appears. Select the Terms of Service check box and click AGREE AND CONTINUE. The Google Auth Platform page is displayed.
2. In the Overview page, click CREATE PROJECT.

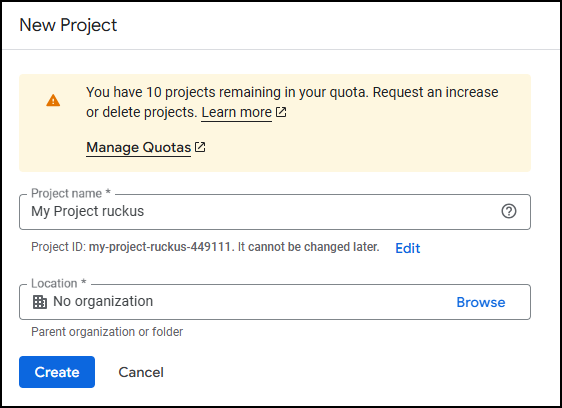

   The New Project page is displayed. Google suggests a project name and auto-generates a project ID based on the project name, but you can edit the project name and project ID.

   Note: You cannot edit the Project ID after the project is created, so ensure you are satisfied with the Project ID before proceeding to the next step.



3. (Optional) Enter the location and click CREATE. The location is the resource that will be the hierarchical parent of the new project. If No organization is an option, you can select it to create your new project as the top level of its own resource hierarchy.
   The OAuth Overview page is displayed along with a success notification indicating that the project has been created successfully.

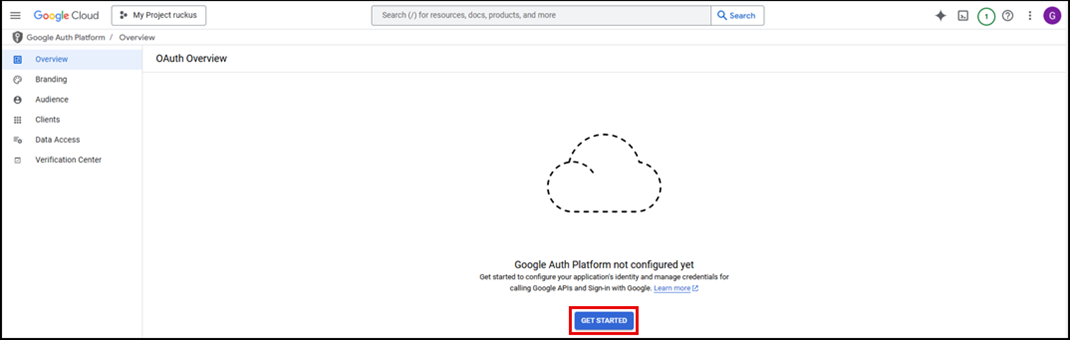

4. In the OAuth Overview page, click GET STARTED.

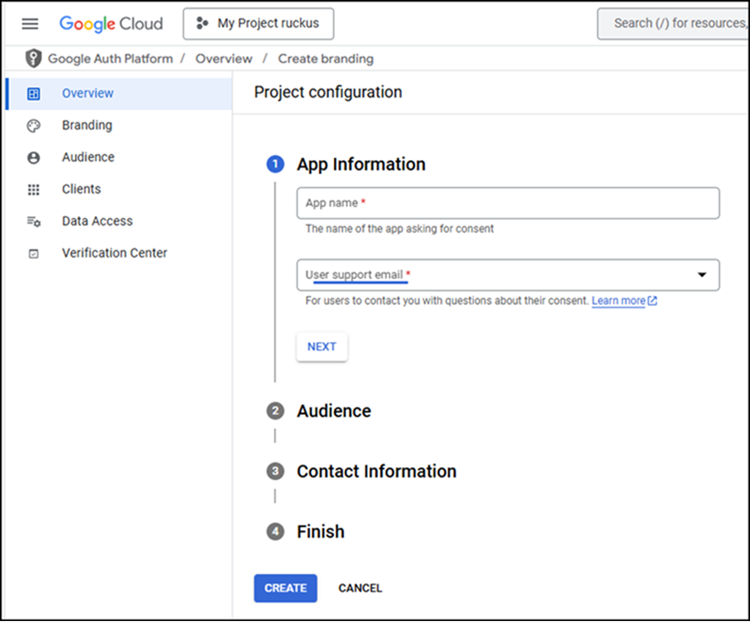

5. Step through the Project configuration wizard to complete the setup until you reach the Finish page.



   • For App Information, enter the app name for the OAuth 2.0 client (used to identify the client in the console and not visible to the end users), select the user support email from the drop-down list, and click Next.
   • For Audience, select External and click Next.
   • For Contact Information, enter at least one email address and click Next.
   • For Finish, click the Google API Services: User Data Policy link and go through the User Data Policy, then click I agree to the Google API Services: User Data Policy check box and click Continue.
6. Click CREATE to complete creating the new project.
7. To create an OAuth 2.0 client, under Metrics, click CREATE OAUTH CLIENT. Alternatively, from the main menu, click Clients and then click +CREATE CLIENT.
8. In the Create OAuth client ID page, complete the following steps:
   • For Application type, select Web application.
   • For Name, enter the OAuth 2.0 client name.
   • For Authorized redirect URIs, enter https://xxx.ruckus.cloud/g/ui/social. (Copy this URL from the Edit Google App window, refer to Logging into RUCKUS One using Google.)
   • Click CREATE.

   Optionally, you can go to Branding and enter required information for App logo, App domain, and Authorized domains.

   The OAuth 2.0 Client ID is created and displayed in the OAuth 2.0 Client IDs table. Take note of the Client ID and Client secret because you must enter these values in the Edit Google App window of the RUCKUS One web interface.

9. To view or copy the Client ID and Client Secret, click the name of the Client ID or perform any of the following in the Actions column:
   • Edit: Click the Edit icon to edit the OAuth client details.
   • Download: Click the download icon. Click the Copy icon to take note of the client ID and client secret because you must enter these values in the Edit Google App window of the RUCKUS One web interface. Optionally, click DOWNLOAD JSON to download the Client ID and Client Secret in a JSON file.

   Click CLOSE to dismiss the download window.
10. (Optional) In the Data Access page, you can configure user access permissions for your app and click SAVE.

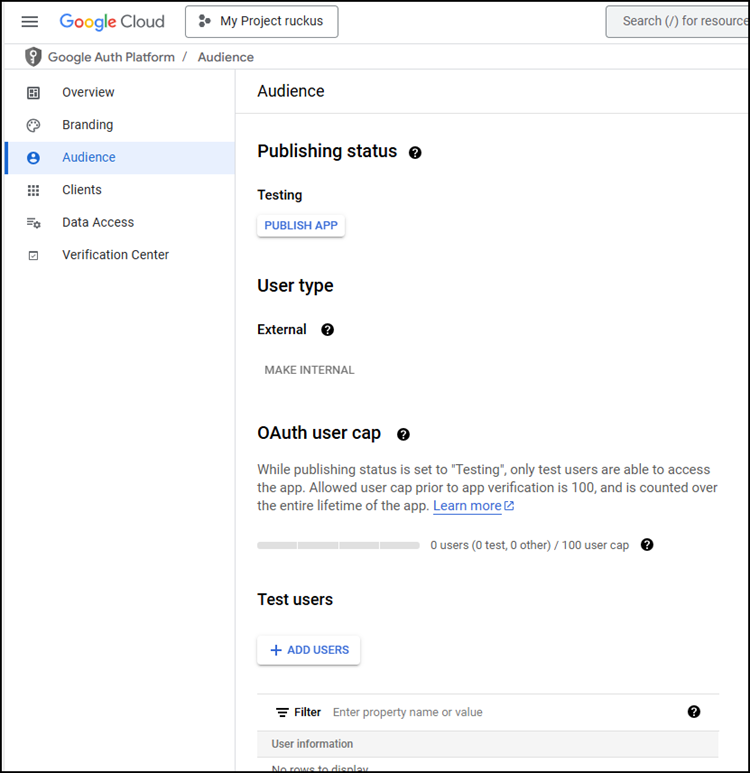

11. In the Audience page, under Publishing Status, click PUBLISH APP.



    A Push to production confirmation dialog box appears. Click CONFIRM.

    • For Publishing status, you can change the status to one of the following, as required:
      • In production: The App will be available to any user with a Google account. If your app's configuration has more than 10 domains, has a logo, or requests sensitive or restricted scopes, you will need to submit the app for verification by clicking Verification Center.
      • Testing: The app will be accessible only to users who are granted access from Test users.
    • The OAuth user cap displays the number of users who can interact with your app using a Google OAuth account. Allowed user cap prior to app verification is 100, and is counted over the entire lifetime of the app. The OAuth user cap cap helps protect users and systems from potential abuse by restricting the number of new authorizations each day.

      When the publishing status is in Testing, only test users are able to access the app. Any Google Account that is authorized access to your app but is not explicitly listed as a test user is counted in other.

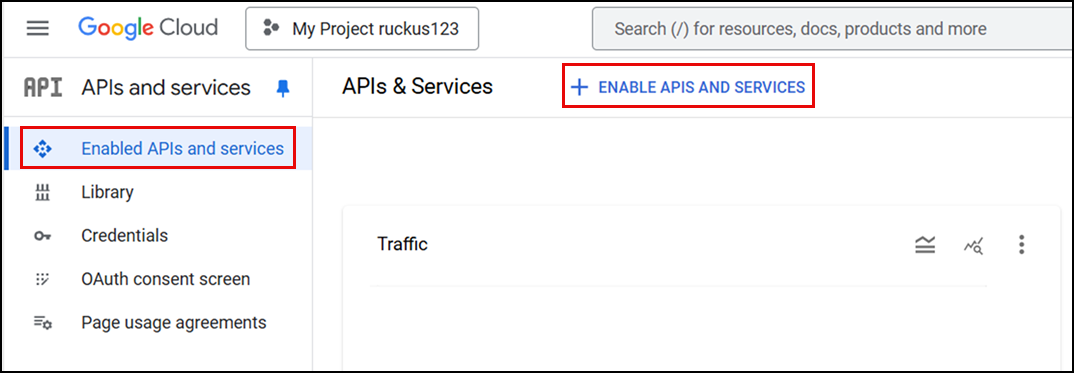

12. Click Enabled APIs & services > + ENABLE APIs AND SERVICES. In the API library page, scroll down to Social and select Google People API. You can also search for Google People API using the search function.

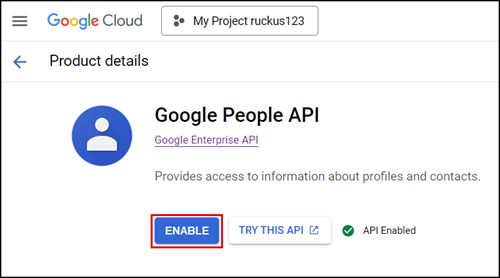

13. In the Google People API product details page, click Enable.



    The API is enabled and information about all Google-authenticated clients can be collected if the client agrees.

Configuring a self-sign-in Captive Portal Wi-Fi network that supports client authentication using a Google account requires that RUCKUS One have a client ID and client secret configured in the Google OAuth 2.0 servers.

1. Create a self-sign-in captive portal network type and step through the Create New Network wizard until you reach the Onboarding page. Refer to Creating a Network That Uses a Captive Portal with Self Sign In for more information. Alternatively, you can edit an existing self-sign-in captive portal network type and step through the Edit Network wizard.

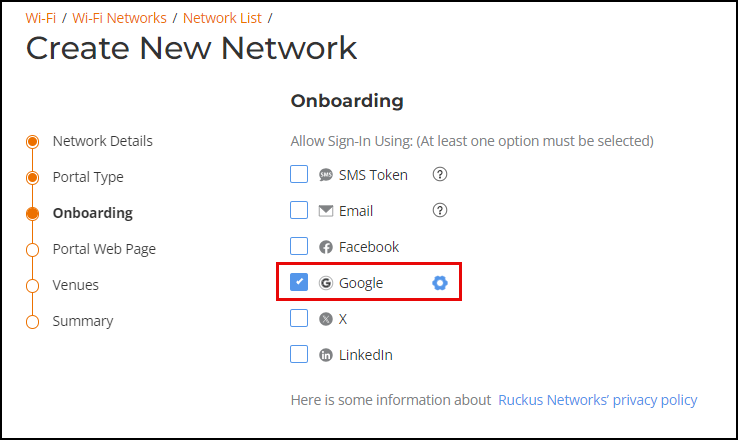

2. In the Onboarding page, select the Google check box and click the icon next to it.
   The Edit Google App window is displayed.



3. Enter the Client ID and Client Secret (refer to Setup Procedure for Google Social Media Login), click Save, and complete the Wi-Fi network configuration.
   When authenticating to the Wi-Fi network using their Google credentials, the user is prompted to log in to their Google account (if not already logged in) and grant the application access to specific data or actions (such as profile info, email, and so on). The user is able to successfully authenticate using their Google account.
