You can customize the IP Settings of the AP. If you want the LAN port settings of a specific AP model to be different from the LAN port settings configured at the venue level, you can override them for a specific AP.

1. On the navigation bar, select Wi-Fi > Access Points > AP List.
   The AP List page is displayed.
2. Click the name of the AP for which you want to customize the AP LAN port settings, then on the Overview page, click Configure. Alternatively, click the checkbox for the specific AP name, then click Edit.
   The AP configuration page is displayed, defaulting to the General tab view.
3. Select the Networking tab.
   The Networking settings page is displayed. By default, the IP Settings section is displayed.





4. (Optional) In the IP Settings section, you can choose one of the following options.
   • Dynamic: When you select Dynamic, the IP address and DNS are configured dynamically.
   • Static: When you select Static, you must enter the IP address, network mask, gateway, and DNS primary and secondary IP addresses.
5. (Optional) From the left mini-navigation bar, click LAN Ports (or alternatively, scroll down the GUI page).
   The LAN Ports settings section is displayed. The default setting is to use the LAN port settings of the venue (the fields are all inactive and grayed out). To customize any of the LAN port settings, click the Customize option; the fields become active, allowing you to modify the settings.



6. Select each LAN port sub-tab that you need to reconfigure, and configure the following as necessary:
   • PoE Operating Mode: Select Auto (default), 802.3af, 802.3at, 802.3bt/Class 5, and others as applicable.
   • Set VLAN ID for All Access Ports: When you enable the Set VLAN ID for All Access Ports toggle, the system displays the Global Untagged VLAN ID input field. It applies the value entered in this field to all access-type ports, overriding their individual Untagged VLAN ID settings. The system disables the original override icon and adds a Global label to indicate the global configuration. If you disable the toggle, the system reverts all access-type ports to use the Untagged VLAN ID specified in their respective Ethernet port profiles.
   • Enable PoE Out: By default, the Enable PoE Out option is disabled. You can enable this option by toggling the Enable PoE Out option on. This option is available for specific AP models only.
   • Enable Port: This option is enabled by default. You may disable the port or re-enable the port by clicking the toggle switch.
   • Ethernet Port Profile: Manages the configuration settings for Ethernet ports on networking devices. Select an Ethernet port profile from the drop-down list or click Add Profile to create a new Ethernet port profile. Refer to Adding a Ethernet Port Profile for more information.
     Note: Applying an Ethernet port profile with Client Visibility enabled will disconnect the AP if you assign the profile to the uplink.
     Note:

     For AP firmware 7.0.0.200.6290 and later versions, any changes to the trunk port VLAN untag ID will take effect. However, for APs with firmware versions earlier than 7.0.0.200.6290, the trunk port VLAN untag ID will remain at the default value of 1, even if the configuration has been changed.

   • Enable SoftGRE Tunnel: Tunnels the traffic to a SoftGRE gateway. Toggle the Enable SoftGRE Tunnel switch on to enable the feature. Select a SoftGRE profile from the SoftGRE Profile drop-down list or click Add Profile to create a new SoftGRE profile. Refer to Creating a SoftGRE Profile for more information.
     Note: The uplink port does not support SoftGRE tunneling, which will cause the AP(s) to disconnect.
     Note: SoftGRE tunnel is not supported if you select an Ethernet port profile with 802.1X Role as Supplicant. If SoftGRE tunnel is already enabled and you switch to a profile with the 802.1X Supplicant role, then SoftGRE tunnel will be automatically disabled.
     Note: There is no alternative keep-alive detection mechanism between the AP and the SoftGRE server other than ping. As a result, if the primary SoftGRE service goes down but the ping to its IP address still succeeds, then the AP will not fail over to the backup gateway.
   • Enable IPsec: Encapsulates data packets within GRE packets and secures them using IPsec. This option is disabled by default and available for configuration only when the SoftGRE Tunnel option is enabled. Toggle the Enable IPsec option to enable this feature. Select an IPsec profile from the IPsec Profile drop-down list or click Add Profile to create a new IPsec profile. Refer to Creating a IPsec Profile for more information.
     Note: A venue supports up to three SoftGRE-activated profiles without IPsec or one SoftGRE profile with IPsec. If a LAN port already has SoftGRE enabled, click the toggle to disable SoftGRE tunneling before enabling SoftGRE with IPsec. Similarly, if SoftGRE with IPsec is enabled, click the toggle to disable SoftGRE with IPsec before enabling SoftGRE tunneling.
     Note: When an Ethernet LAN port for an AP is enabled and configured with both SoftGRE and IPsec, all the wired clients connected to the customized AP LAN port are directed to the SoftGRE tunnel, protected by IPsec.

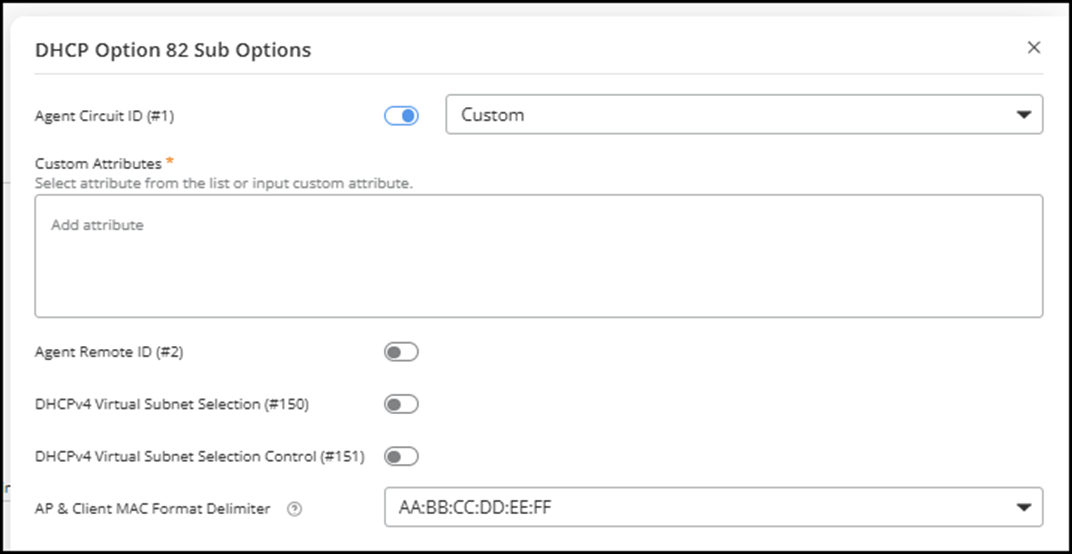

   • DHCP Option 82: DHCP Option 82 allows a DHCP relay agent to insert circuit-specific information (such as port or MAC address) into DHCP packets before forwarding them to the DHCP server. This enables the server to assign IP addresses based on client location or relay source. In RUCKUS One, this feature is supported for wireless clients or for wired clients connected via AP LAN ports. By default, this feature is disabled. Toggle the DHCP Option 82 switch on to enable this setting. After enabling DHCP Option 82, configure at least one of the following sub-options:
     Note: DHCP Option 82 cannot be enabled unless at least one sub-option is enabled.
     • Agent Circuit ID (#1): Click the toggle to enable this option, then select how the AP interface or port is identified from the drop-down list.



     • Custom Attribute: Click Add attribute to access the drop-down list of system-defined attributes. This field appears (and is mandatory) only when you select Custom as the Agent Circuit ID.
       Note: You can add up to eight custom attributes, including user-defined attributes. The system separates multiple attributes by inserting a colon (:) between each. Use only letters (a–z, A–Z) and numbers (0–9), with a maximum length of 24 characters per attribute. Click the icon to add each attribute. Each attribute can be added only once.
     • Agent Remote ID (#2): Click the toggle to enable this option, then select the identifier for the AP forwarding the DHCP request from the drop-down list.
     • DHCPv4 Virtual Subnet Selection (#150): Click the toggle to enable or disable this setting to define whether a virtual subnet should be used for IP address assignment.
     • DHCPv4 Virtual Subnet Selection Control (#151): Click the toggle to enable this option, then select and configure how the virtual subnet is applied. Options include Area and ESSID. If you select Area, a text field appears where you can enter the area name (1 to 26 characters).
     • AP and Client MAC Format Delimiter: Choose the syntax used to format MAC addresses. Options include AA:BB:CC:DD:EE:FF (the default), AA-BB-CC-DD-EE-FF, and AABBCCDDEEFF.
     • Click Apply to save your configuration.
   • Client Isolation: Enabling client isolation enhances network security by preventing devices on the same Wi-Fi network from communicating directly with each other. To apply client isolation, a manual device reboot is necessary. You can choose the specific AP devices from the AP list and click Reboot to restart them.
     Note: Enabling client isolation on the uplink will disconnect the AP.
   • Isolate Packets: When Client Isolation is enabled, you can also isolate data wired client packets within the network to enhance network security and performance by controlling how data is transmitted and received within the network. Select the packet type from the drop-down menu. Isolating Unicast packets prevents direct communication between individual devices on the same network. Isolating Multicast/broadcast packets prevents specific devices from receiving data from the same device unless explicitly allowed. Isolating Unicast and multicast/broadcast packets prevents all devices from receiving data from one device.
   • Automatic support for VRRP/HSRP: When Client Isolation is enabled, you can also enable Automatic support for VRRP and HSRP, ensuring seamless failover and increased network reliability by dynamically managing router failover without manual intervention. This maintains high availability and reliability in critical network environments.
   • Client Isolation Allowlist: Enabling Client Isolation on a specific port for an AP model at a particular venue prevents devices on the same network from communicating with each other. However, the Client Isolation Allowlist permits certain devices to bypass this restriction and communicate with isolated clients. You can select an allowlist from the drop down menu or click Add Policy to create one. These policies allow specific devices to communicate with isolated clients despite the isolation settings.

     To create a policy, provide the Policy Name, Description and add clients to the policy from the Select from Connected Clients. You can also add clients by clicking Add New Client. Click Policy Details to view information about the policy.

   • (Optional) If you want to revert to the default port settings, click Reset to default. A confirmation message is displayed, click Continue. Depending on the AP model, the following configurations will be reset to their default settings: Enable Port, Ethernet Port Profile, Enable SoftGRE Tunnel, and Client Isolation.
7. Click Apply.
