Each navigation option results in slight variations on the service details provided, so choose one or more methods that best suit your needs.

Perform one or more of the steps as follows:

1. View the SD-LAN Service through Network Control.
   1. Click on the Network Control > My Services menu option, then click the SD-LAN tile.

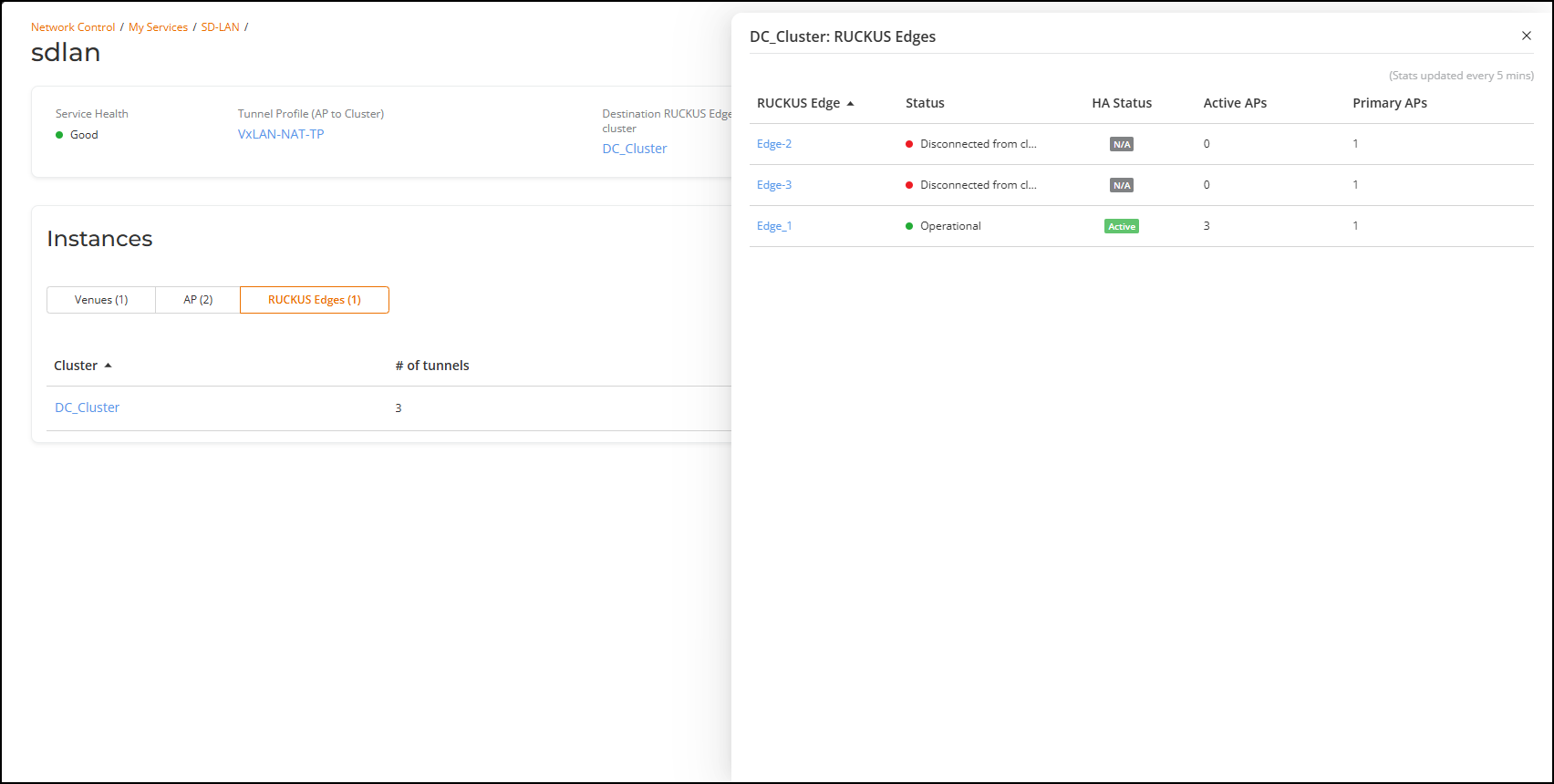

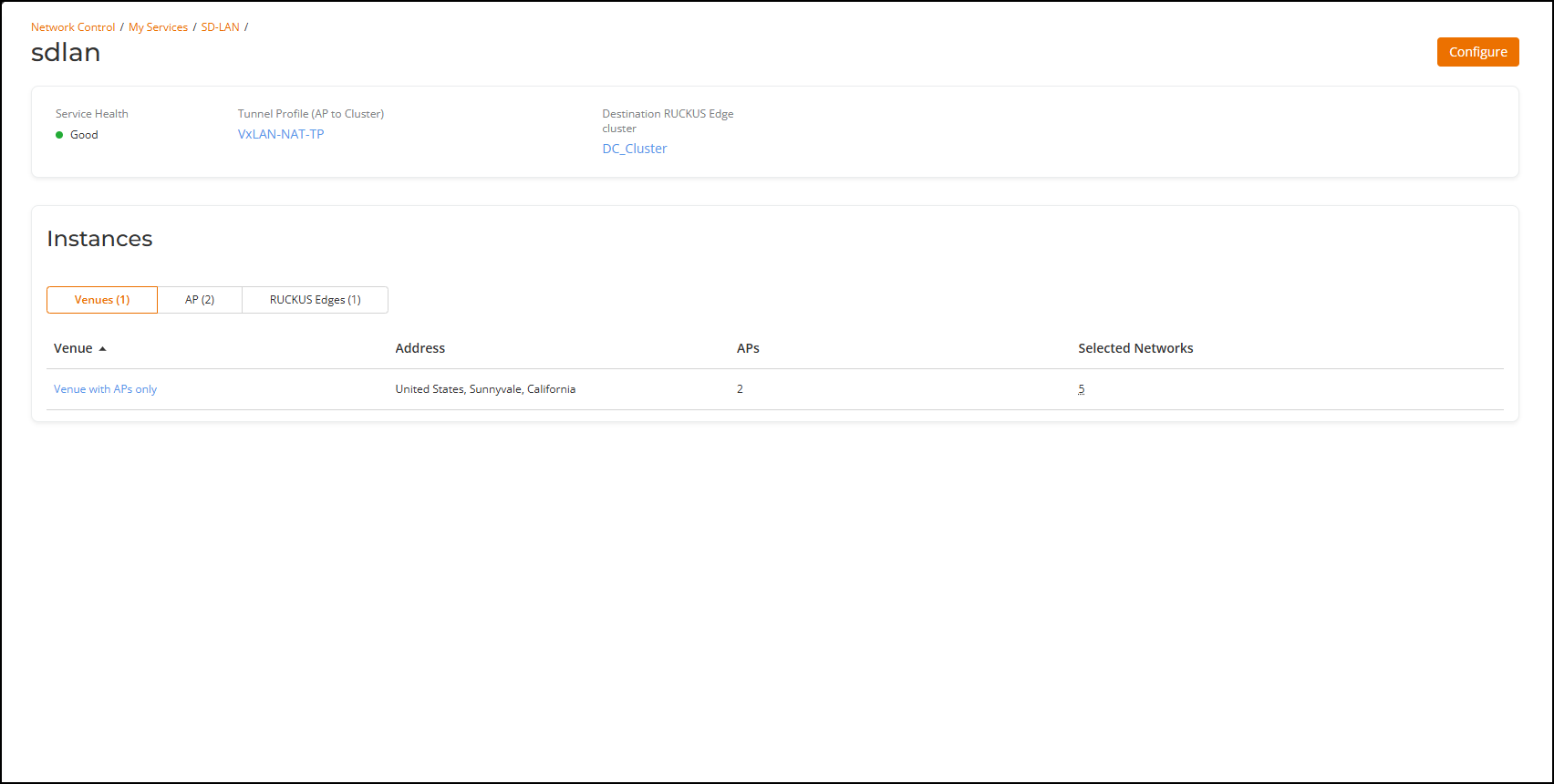

   2. In the list of SD-LAN services, click on the name of a specific SD-LAN service. The service details appear, reflecting the associated venue, cluster, and tunnel profile, as well as an end-to-end system architecture map and information regarding the related networks and RUCKUS Edge devices.









2. View the SD-LAN Service through RUCKUS Edge.
   1. Click on the RUCKUS Edge menu option.
   2. In the list of Edge devices, click the icon to expand the cluster sublist.

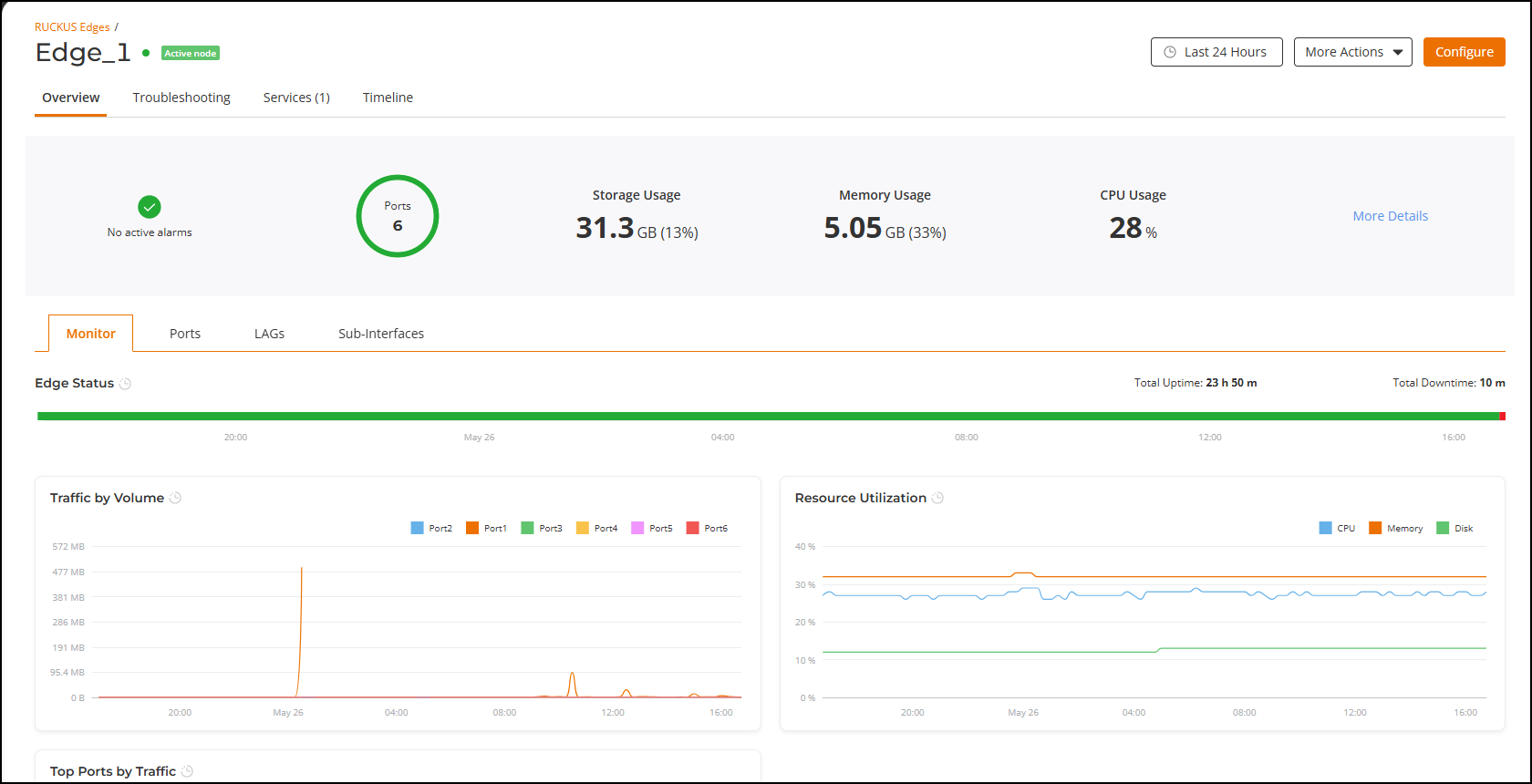

   3. Click on an Edge device in the sublist. The device Overview tab appears.
   4. Click the Services tab. The SD-LAN service appears in the table, reflecting basic information such as status, health, service version, and whether an update is available.

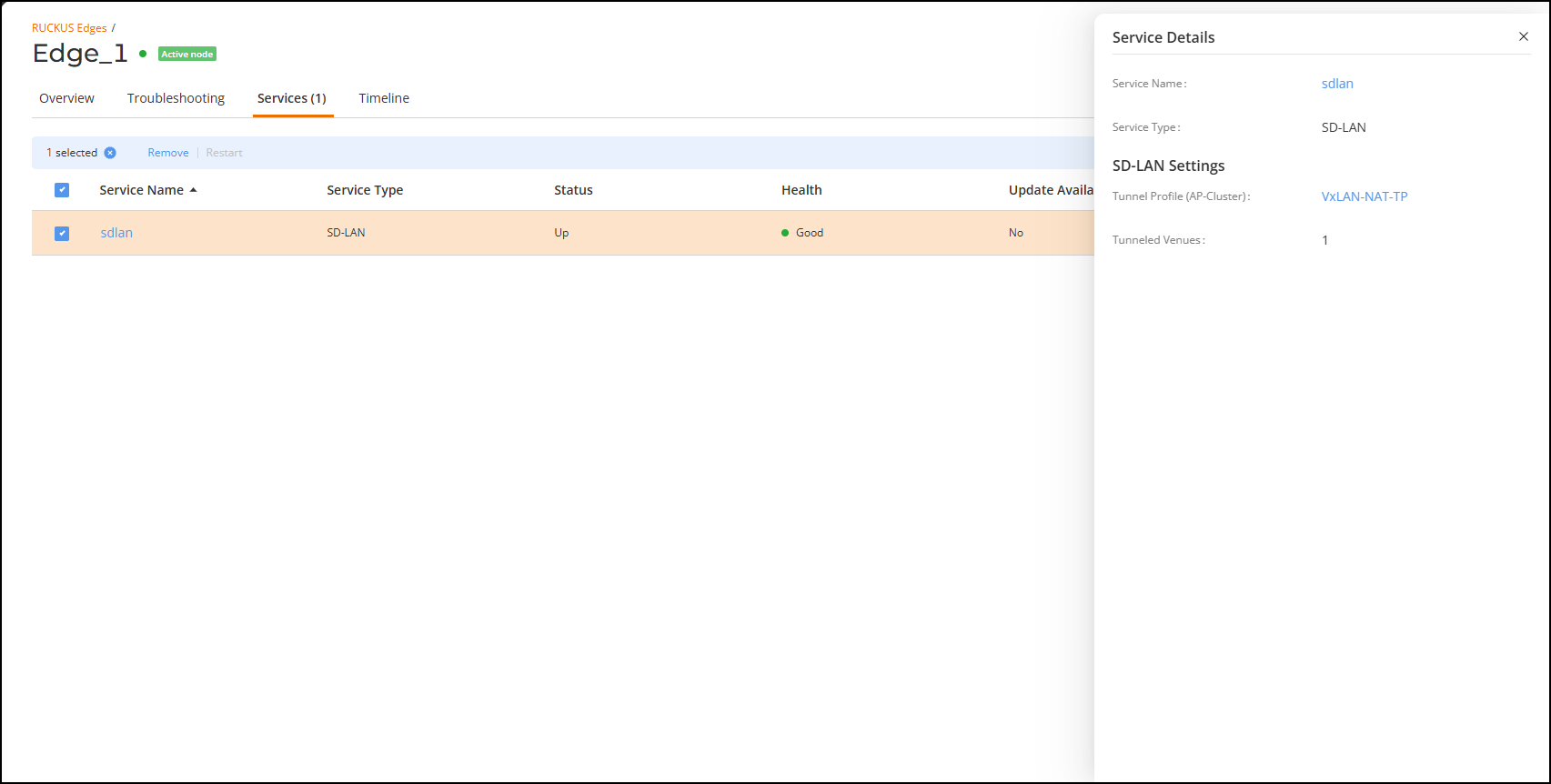

   5. Click on the name of the SD-LAN service to view the Service Details sidebar containing additional information.









3. View the SD-LAN Service through Venues.
   1. Click on the Venues menu option, then click the name of the venue you want to view. The venue Overview tab appears.
   2. Click the Services tab. The DHCP sub-tab appears.

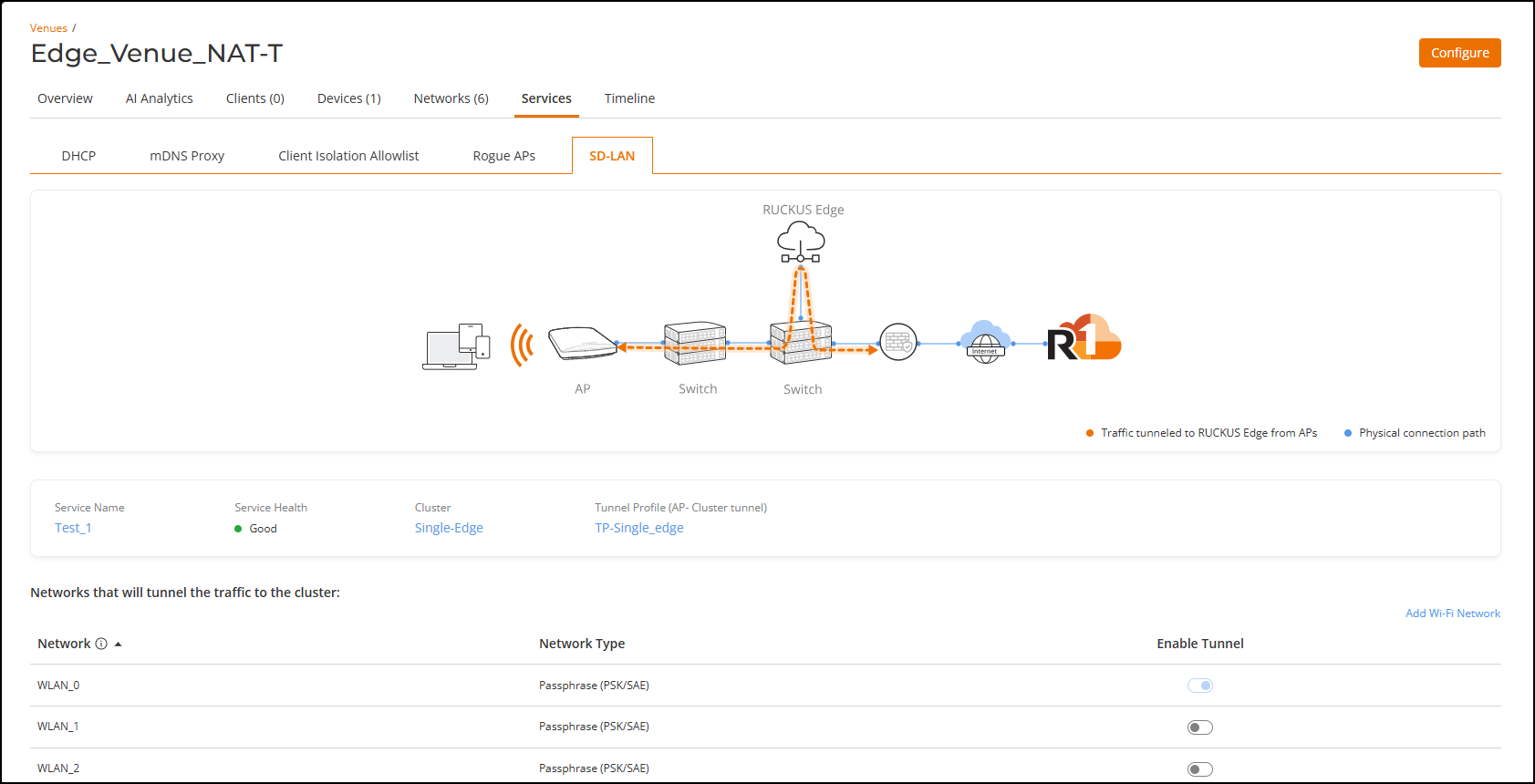

   3. Click the SD-LAN sub-tab. The service details appear, reflecting the end-to-end system architecture map, the service name, service health, cluster, and tunnel profile, as well as networks that will tunnel the traffic to the cluster.
