Tunnel Profile

Tunnel mode enables wireless clients to roam across different APs on different subnets. For example, a Wi-Fi network may tunnel end-user traffic by utilizing an SD-LAN service configured with a tunnel profile that supports VLAN to VNI mapping. If the WLAN has clients that require uninterrupted wireless connection (for example, VoIP devices), RUCKUS recommends enabling tunnel mode.

Note: When tunnel mode is enabled on a WLAN, multicast video packets are blocked on that WLAN. Multicast voice packets, however, are allowed.

Complete the following steps to view the Tunnel Profile details:

  1. From the navigation bar, select Network Control > Policies & Profiles.
    The Policies & Profiles page is displayed.
  2. In the Policies & Profiles page, click the Tunnel Profile tile.
    The Tunnel Profile page is displayed. The Tunnel profiles are displayed in the table. The Name column displays the Tunnel profile names, Gateway Path MTU Mode displays the status, Force Fragmentation displays the status, SD-LAN displays the total number of SD-LAN services configured to use this tunnel profile, and Networks displays the total number of network instances that use the Tunnel profile.

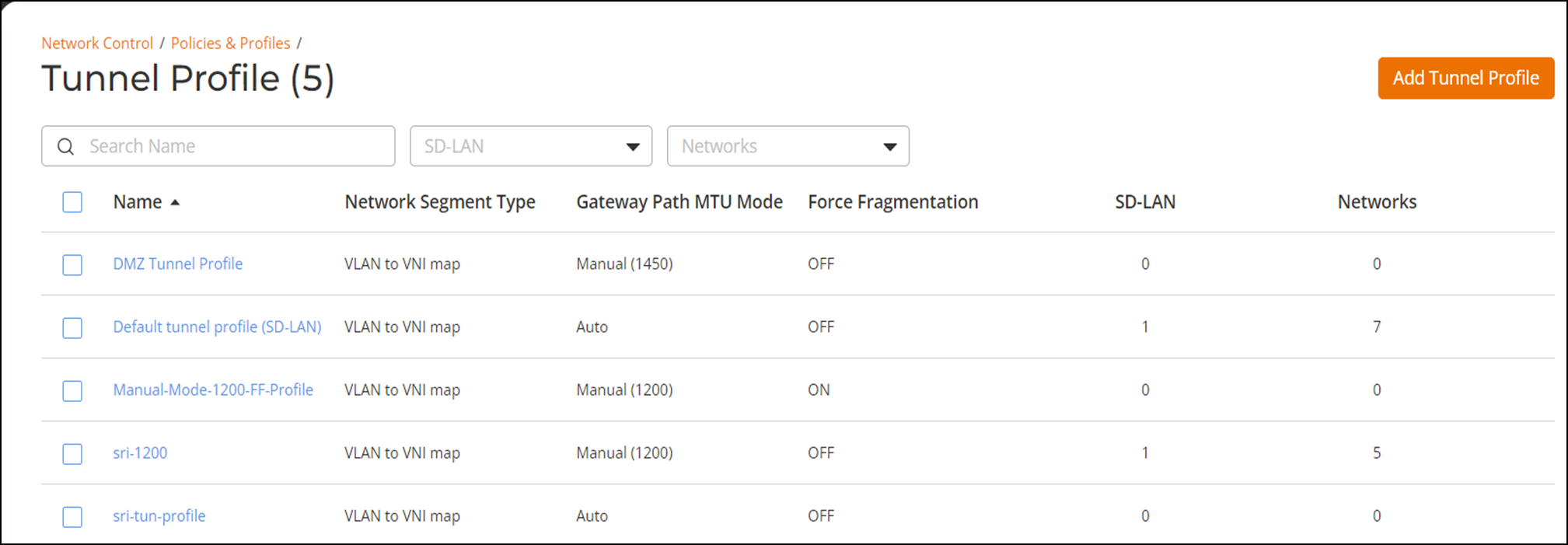

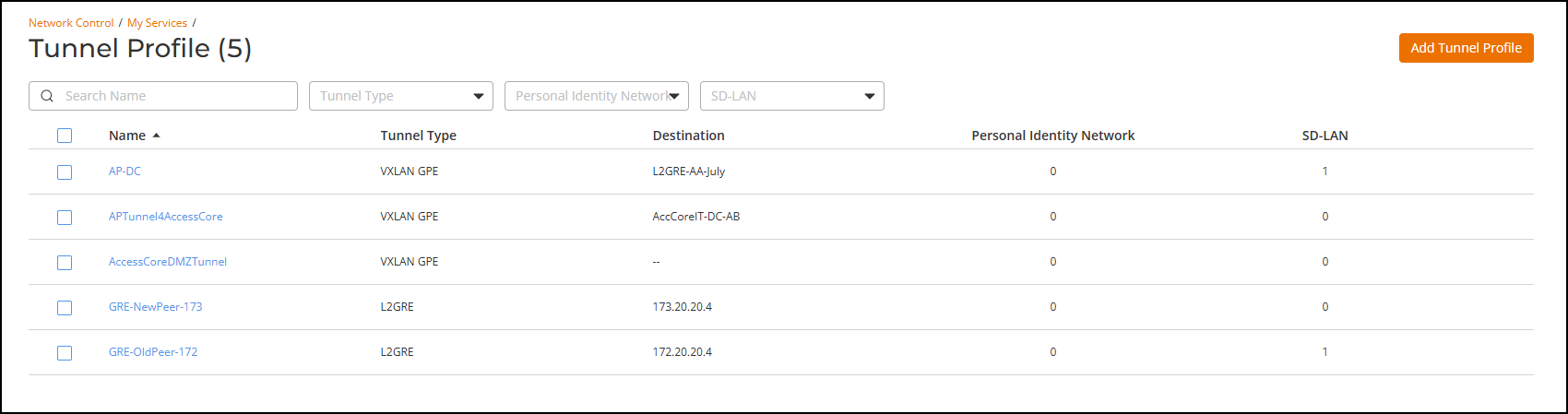

    Tunnel Profile Page


  3. In the Name column, click on a specific tunnel profile name.
    Detailed information is displayed for the selected tunnel profile, including the tunnel configuration settings and the network instances with which the tunnel profile is associated.

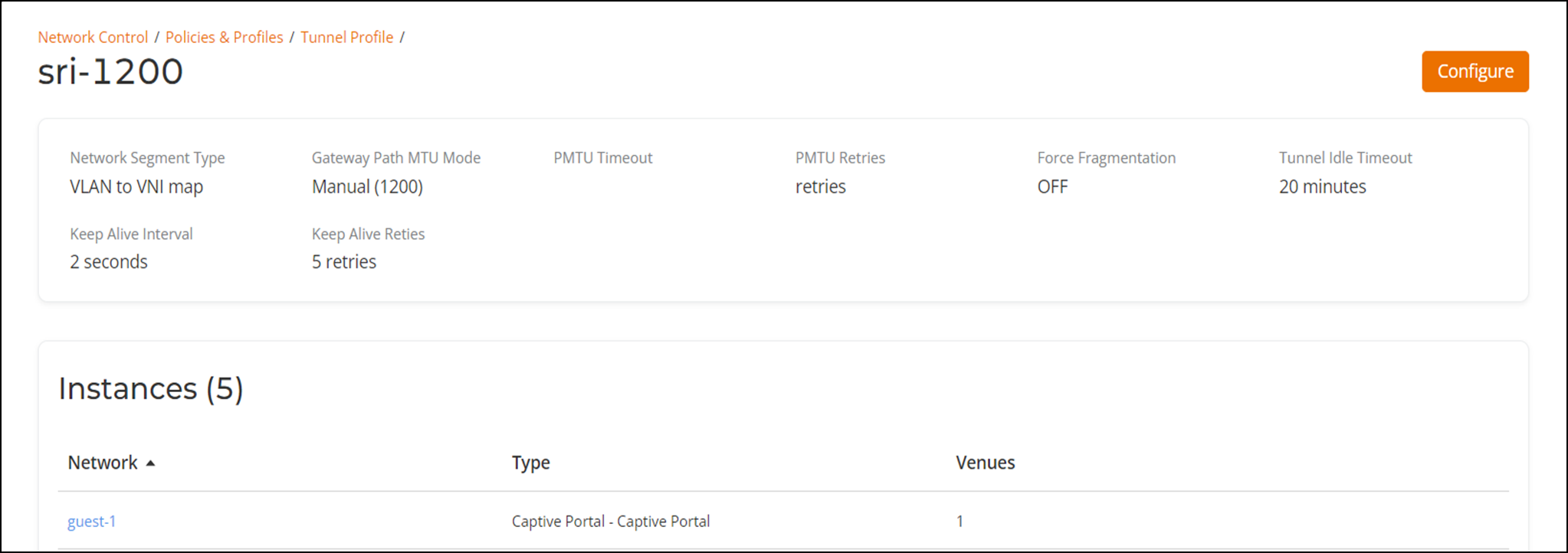

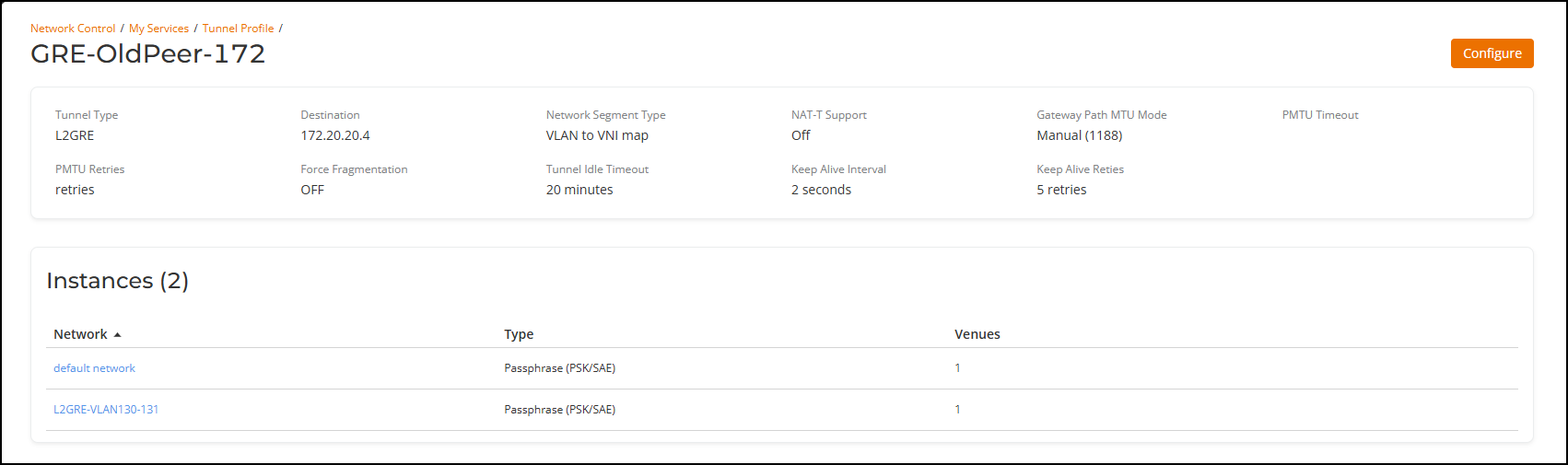

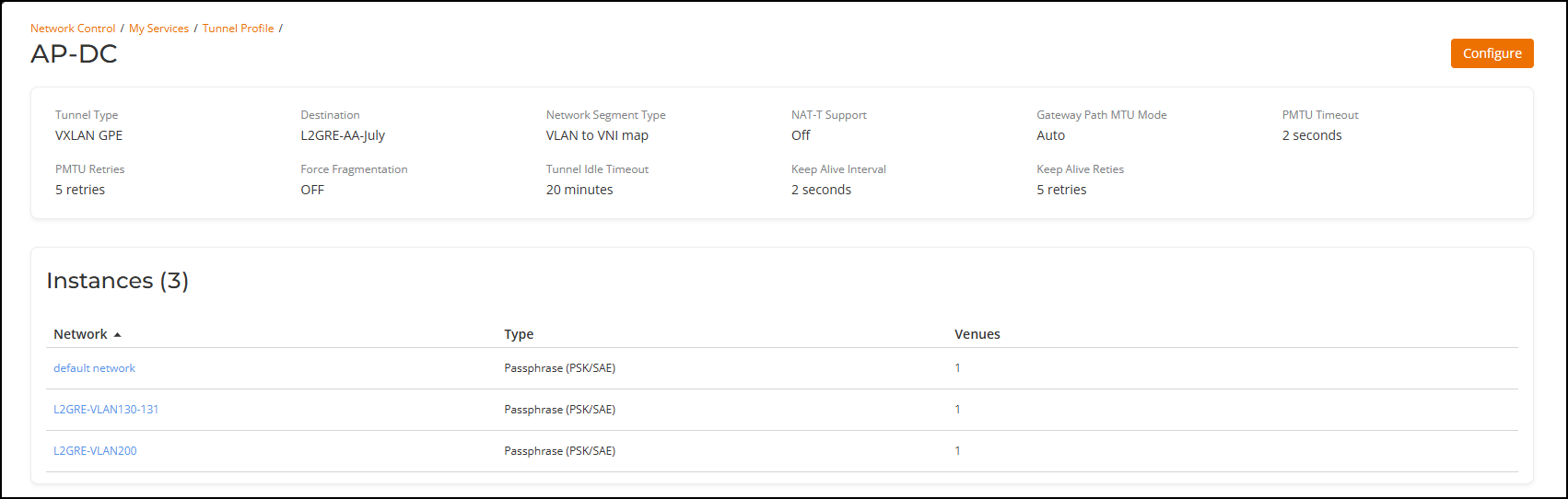

    Details Page for a Tunnel Profile
