Adding and Managing a Switch Access Control Policy

A Layer 2 access control list (ACL) policy lets you allow or deny wired network traffic based on the source and destination MAC addresses of packets coming in to your RUCKUS ICX switch.

Complete the following steps to create a switch Layer 2 MAC ACL policy.
  1. From the navigation bar, select Network Control > Policies & Profiles.
    The Policies & Profiles page is displayed.
  2. In the Policies & Profiles page, click the Access Control tile. By default, the Wi-Fi tab and Access Control Set sub-tab are displayed. Alternatively, in the Policies & Profiles page, click Add Policy or Profile, select the Access Control tab, and click Next.
  3. Select the Switch tab.

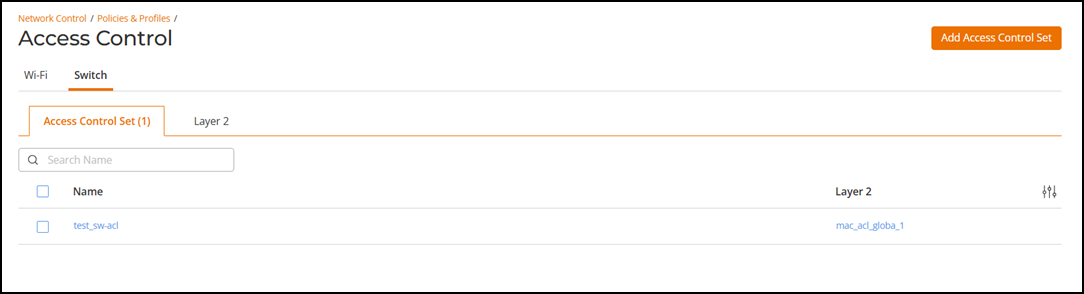

    Access Control: Switch Tab
    By default, the Access Control Set sub-tab is displayed with the following information:
    • Name: Displays the Access Control Set name. Click on the policy name to view more details.
    • Layer 2: Displays the Layer 2 policy. Click on the policy name to view more details.

    You can either create a switch Access Control Set first, then apply a Layer 2 policy, or create a Layer 2 policy first, then associate a switch Access Control Set.

  4. Select the Layer 2 sub-tab.
    The following information is displayed:
    • ACL Name: Displays the name of the Layer 2 policy.
    • Rules: Displays the number of rules configured for the Layer 2 policy. Pause your cursor over the number to view more details.
    • Switches: Displays the number of switches associated with the Layer 2 policy. Pause your cursor over the number to view more details.
    • Venues: Displays the number of venues associated with the Layer 2 policy. Pause your cursor over the number to view more details.
  5. Click Add Layer 2 Policy and configure the following settings:
    1. Enter a Layer 2 policy name.
    2. Under Rules, click Add Rule.

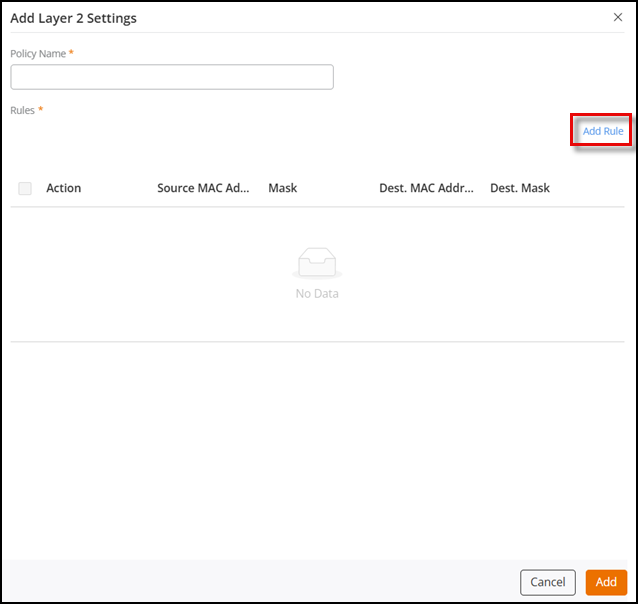

      Adding a Layer 2 Policy
      The Add Rule sidebar is displayed.
      Adding a Layer 2 Policy Rule

      Configure the following settings:

      • For Action, select a Layer 2 policy rule (Permit or Deny).
      • For Source MAC, select Any or Source MAC Address to enter a source MAC address and mask. The mask is used to define a range of MAC addresses. The mask comprises 0 and f characters. In each bit position, an f means that the bit is not checked, and a 0 means that the bit must equal the value in the defined MAC address. For example, mask 0000.0000.0000 matches only the defined MAC address, whereas mask ffff.ffff.ffff matches all MAC addresses.
      • For Destination MAC, select Any or Destination MAC Address to enter a destination MAC address and destination mask.
      • Click Add. You can see the new Layer 2 policy rule added in the Rules table.

        Optionally, you may select a specific Layer 2 policy rule and click Edit or Delete to perform the edit or delete operations, respectively.

    3. Click Add to save the new Layer 2 MAC ACL policy.
  6. (Optional) Click the Access Control Set sub-tab, then clickAdd Access Control Set. The Add Switch Access Control page is displayed.

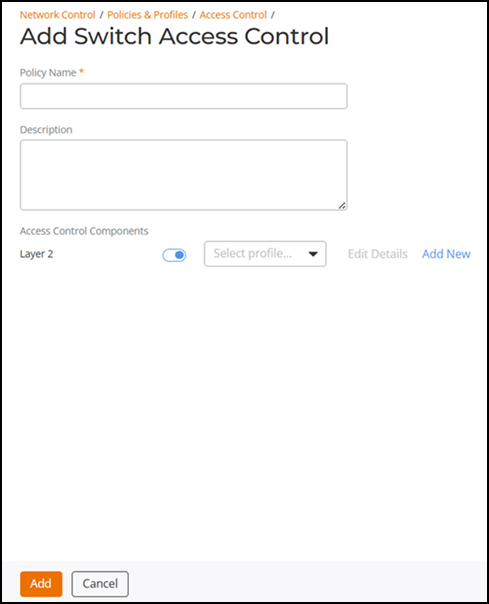

    Adding a Switch Access Control Policy
    1. Enter a policy name and optionally enter a description.
    2. Under Access Control Components, toggle the Layer 2 option and select an existing Layer 2 policy from the drop-down list or click Add New to create a new Layer 2 policy. Click Edit Details to edit the Layer 2 policy details. Alternatively, select the Layer 2 sub-tab, then click Add Layer 2 Policy to create a new Layer 2 policy.
    3. Click Add to add the Access Control Set.

    You can see the ACL set added to the Access Control Set table.

    You can search for an ACL set using its name. Enter the full or partial policy name; all matching entries are displayed.

    You can see the Layer 2 policy added to the Layer 2 table. Pause the cursor over the row entries in the Rules, Switches, and Venues columns to view more details.

    You can search for a Layer 2 policy using its name. Enter the full or partial policy name; all matching entries are displayed.

  7. (Optional) From the list of existing Access Control Sets or Layer 2 policies in the Access Control Set or Layer 2 tables, click the checkbox for a specific policy and perform the following actions:
    • Click Edit to edit the policy. Alternatively, click on a specific policy then click Configure.
    • Click Delete to delete the policy. You are prompted to confirm deletion.
    Note: When the ACL is being actively used on any ports in the network, editing or deleting the MAC ACL will impact those ports. The system requires you to confirm that you want to complete the action by clicking Apply or Delete. Otherwise, you may click Cancel to cancel the action.
  8. (Optional) Click on a specific Layer 2 policy to view the Layer 2 configuration details page. The Overview tab displays the MAC ACL applied to the switch except the customized MAC ACLs. The Rules tab displays the rules of the MAC ACL.
