Adding and Managing a SAML Identity Provider Profile

You can associate a SAML Identity Provider (IdP) with Captive Portal settings, providing secure authentication for Wi-Fi users and administrators and ensuring seamless user access.

You may create up to 64 SAML IdP profiles.
Complete the following steps to create a SAML Identity Provider profile:
  1. From the navigation bar, select Network Control > My Services.
  2. In the My Services page, click the Identity Provider tile. By default, the SAML tab is displayed with the following information:

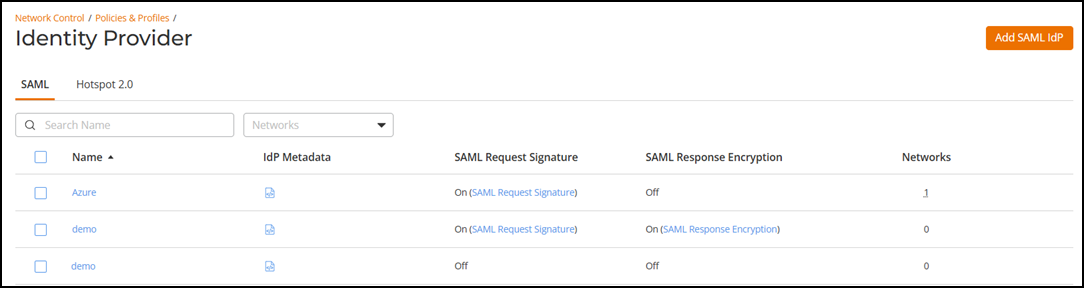

    SAML Tab
    • Name: Displays the name of the SAML Identity Provider profile.
    • IdP Metadata: Displays the IdP metadata that is provided by the identity provider. Click on the icon to view the IdP metadata.
    • SAML Request Signature: Displays whether the SAML request signature option is on or off. If it is on, then you may click the blue SAML Request Signature link to view more details.
    • SAML Response Encryption: Displays whether the SAML response encryption is on or off. If it is on, then you may click the blue SAML Response Encryption link to view more details.
    • Networks: Displays the number of networks associated with a SAML IdP profile. Pause your cursor over the network number to view more details.

    You can filter the list of profiles by network name and sort the SAML table by clicking on the column headers. By default, the table is sorted alphabetically by IdP profile name.

  3. To add a new identity provider, select Network Control > Service Catalog. Alternatively, You can click on Network Control > My Services > Add Service.
    The Service Catalog page is displayed.
    Note: The My Services page displays tiles only for those services that already have at least one instance added to the account. The Service Catalog page always displays the complete list of services available in RUCKUS One.
  4. Select Identity Provider, and click Add.
    The Add Identity Provider page is displayed. By default, SAML IdP is selected on the Add Identity Provider page.

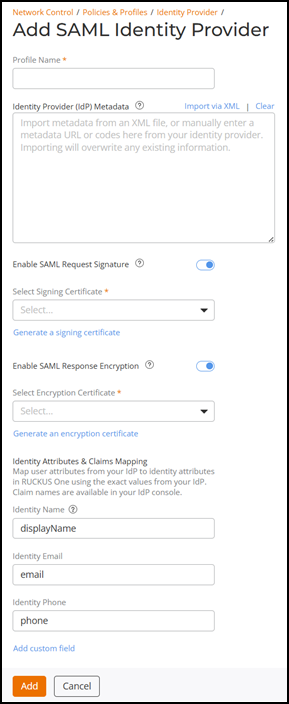

  5. The Add SAML Identity Provider page is displayed.
    Adding a SAML Identity Provider Profile
  6. Enter a profile name.
  7. In the Identity Provider (IdP) Metadata field, enter the IdP metadata URL provided by your identity provider, or paste the XML codes from your identity provider, or click Import via XML to import metadata from an XML file. Importing will overwrite any existing information. Click Clear to enter the metadata again.

    For more information on how to get the IdP metadata, refer to Configuring SAML SSO with Azure AD.

  8. (Optional) Toggle Enable SAML Request Signature to enable RUCKUS One to digitally sign and validate SAML authentication requests to an external IdP, ensuring data integrity and protection against unauthorized access. Select a signing certificate from the drop-down list or click Generate a signing certificate to generate a new signing certificate (refer to Adding a Certificate Authority and Generating Server and Client Certificates).
    Only certificates with the Digital Certificate option selected are displayed in the Signing Certificate drop-down list.
  9. (Optional) Toggle Enable SAML Response Encryption to enable SAML response encryption in your IdP setup for additional security. Select a server encryption certificate from the drop-down list or click Generate an encryption certificate to generate a new encryption certificate (refer to Generating Server and Client Certificates)).
    Only certificates with the Key Encipherment option selected are displayed in the Encryption Certificate drop-down list.
  10. (Optional) In the Identity Attributes & Claims Mapping section, enter the identity display name, identity email, and identity phone number to map user attributes in RUCKUS One using the exact values from your IdP. The claim names are available on your IdP console.
  11. (Optional) Click Add custom field, select an attribute type from the drop-down list and enter a claim name. If you want to enter another attribute name and claim name, click Add custom field again.
  12. Click Add.
    You can see the new SAML IdP profile in the SAML tab. A maximum of 64 SAML IdP profiles can be created per tenant.

    You can filter the list of profiles by network names. You can sort the SAML table by clicking on the column headers.

  13. (Optional) Manage existing SAML IdP profiles as necessary. On the SAML tab, click the checkbox for a specific profile and perform any of the following actions:
    • Click Edit to edit the SAML IdP profile. Alternatively, you can click on the SAML IdP profile, then on the Details page, click Configure.
    • Click Download SAML Metadata to download the SAML metadata file and provide it to your identity provider. Alternatively, you can click on the SAML IdP profile, then in the Details page, click Download SAML Metadata.
    • Click Delete to delete the SAML IdP profile. Note that you cannot delete a profile that is associated with a network.
